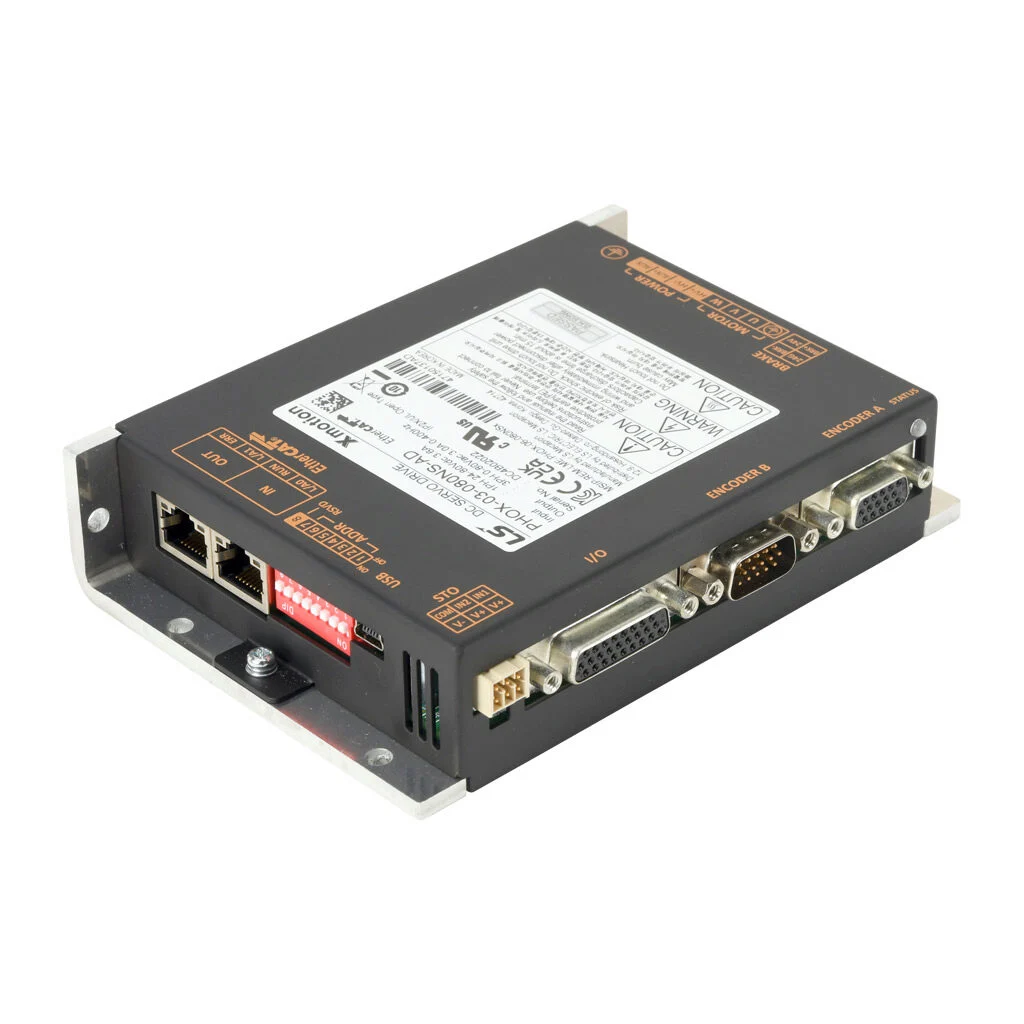

LS Electric servo drive, 150W, 24-80 VDC, (2) Ethernet 100Base-TX (RJ45) port(s), EtherCAT Slave. For use with 100W systems.
Product Attribute Table
Voltage Type : DC
Amperage Rating : 3A
Power Rating : 150W
Nominal Input Voltage : 24-80 VDC
Output Type : SVPWM output
Steps per Revolution : Up to 19-bit (524288 ppr)
Encoder Output : Yes
Encoder Resolution : 19-bit (524288 ppr)
Communication Port and Connection Type(s) : Ethernet 100Base-TX (RJ45)
Port Protocol(s) : EtherCAT Slave
Port Speed(s) : 100 Mbps
Temperature Rating : 0 to 50 deg C
Enclosure Type : Enclosed
IP Rating : IP20
Mounting : Panel
Control Mode : Torque, velocity and position
Command Signal(s) : step and direction, CW/CCW, A/B Quad, internal indexing (via discrete input), torque and velocity (via discrete and analog input)
Number of Discrete Input Points : 4
Discrete Input Type : Sinking/sourcing
Number of Discrete Output Points : 4
Discrete Output Type : Sinking/sourcing
Number of Analog Input Channels : 1
Analog Input Signal Type : Voltage
Input Voltage Signal Range : +/- 5 VDC
Number of Analog Output Channels : 2
Analog Output Signal Type : Voltage
Output Voltage Signal Range : +/- 10 VDC
Tuning Mode : On-line auto/off-line auto/manual
Protection Type(s) : overcurrent, overload, over-temperature, overvoltage, undervoltage, encoder error, position error, current sensing error
Configuration : Software
For Use With : 100W systems
