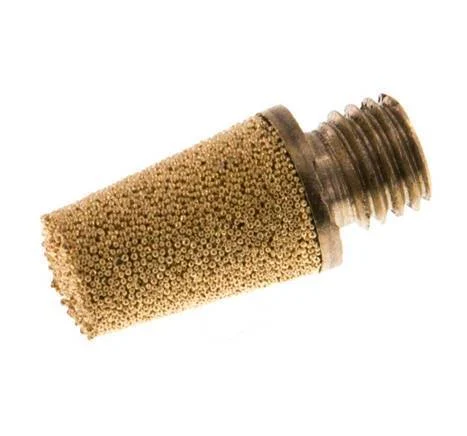

Pneumatic Muffler Sintered Bronze M5 [5 Pieces]

Pneumatic sintered bronze muffler with M5 male thread.

Compressed air that exits a compressed air system can be very loud and harmful. The high frequency and intensity of the noise are a potential risk for the hearing. A simple, cost-effective solution, is to install a air silencer at a vent point. Some examples are the outputs ports of a pneumatic solenoid valve, or an unloader valve on a compressor. The damper is screwed into the outlet port and instantly provides a strong sound reduction.

Dimensions: W=8.5mm, H=15mm

Specifications

Connection size : M5
Connection type : Outer thread metric
Connection material : Sintered bronze
Sound absorber material : Sintered bronze
Length (mm) : 15
