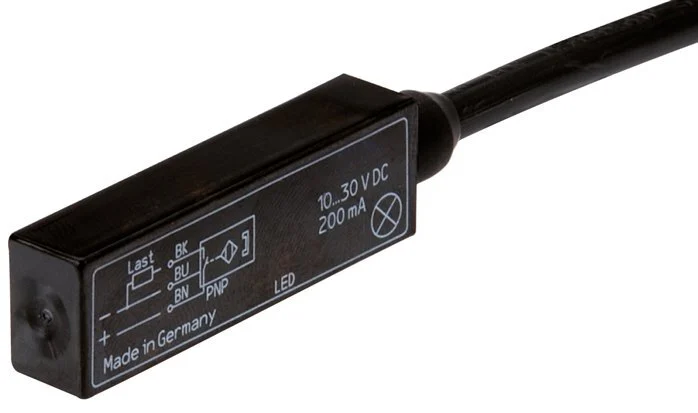

This pneumatic cylinder sensor offers position feedback to control systems in automated machinery and equipment. This reed switch, also called a magnetic proximity sensory, can reliably determine the proximity of a pneumatic cylinder piston due to an internal magnet on the piston. When the piston moves and the internal magnet passes the sensor, the output will switch “ON” to signal to the control system the status (position) of the cylinder. Depending on where the sensor is mounted, it can detect extension, retraction, or individual positions along the cylinder body. This sensor requires 10 to 70 V DC or 10 to 48 V AC. This sensor features a 2 wire design with a 3 m cable for power wiring. An LED is available for troubleshooting and operation status indication. It is important to note that the maximum power input for this sensor is 20 VA and should never be exceeded to prevent sensor damage. To reduce mounting space, this sensor has a compact design with a length of 40 mm and height of 8 mm. For convenience, this sensor will mount using the included mounting band around the cylinder body. This sensor has an IP67 rating, is suitable for a temperature range of -25 to 75 °C (-13 and 167 °F).
Specifications
Cylinder ISO standard : ISO 15552,ISO 6432,Round 2-63mm
Signal output : Two-wire
Electrical connection : Cable
Rated voltage DC (V) : 10 V to 70 V
Material : PEI
Rated voltage AC (V) : 10 V to 48 V
Cable length (m) : 3
Peak power (W) : 20
Max. current (mA) : 500
Sensor mounting style : With mounting kit (not included)
Sensor technology : Reed switch
Degree of protection (IP) : IP67
Status indication : Yes
Color of light : Red
Cable diameter (mm) : 2
Voltage-type : AC/DC
Ambient temperature (°C) : -25 °C to 75 °C
Diameter sensor (mm) : 12
Height of sensor (mm) : 8
Length of sensor (mm) : 40
Suitable for safety functions : No
Type of actuation : Magnet
