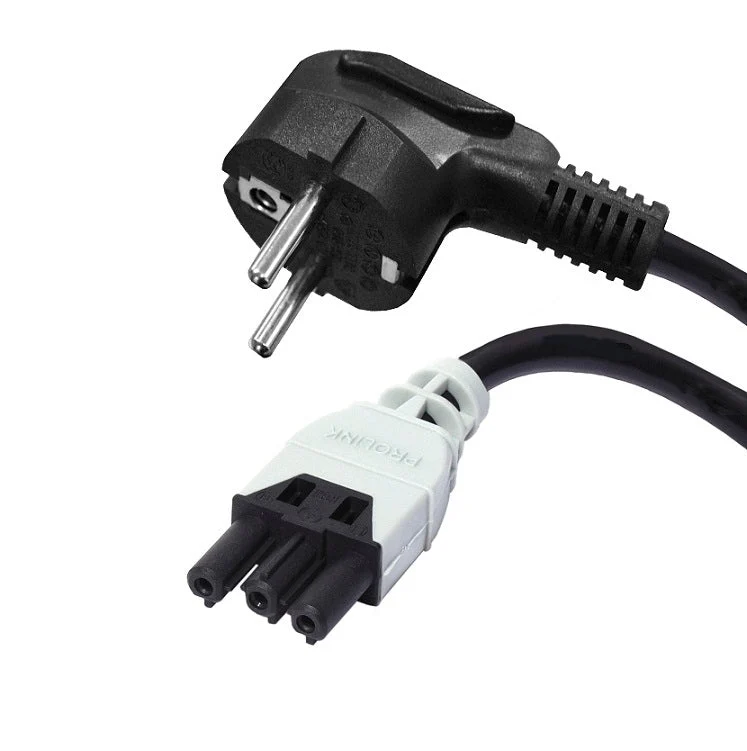

Ratio Electric Prolink patch cable inst.bare building installation, design side 1 mains plug, design side 2 mating plug (female), type made-up cable connection cable equipment, total length 2000mm, sheathing black, nominal conductor cross-section 1.5mm², coding/contact insert other.
Specifications
Rated voltage (V) : 250
Rated current (A) : 16
Number of poles : 3
Degree of protection (IP) : IP20
Type of finished cable : Device connection cable
Type side 1 : Mains plug
Type side 2 : Bus
Conductor end treatment : Cable end sleeves
Total length (mm) : 2000
Mechanical coding : Yes
Color coding/contact insert : Other
Color housing : White
Cable type : H05VV-F
Cable diameter (mm) : 7.8 mm to 8.2 mm
Dismantle length (mm) : 40
Strip length (mm) : 6
Color outer sheath : Black
Pole codification : L, N, PE
Nominal cross section conductor (mm²) : 1.5
Locking mechanism : Integrated in plug-in connector
Insulating piece permanent temperature-resistant (°C) : 100
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 70
Halogen free : No
Fire load (kWh) : 0
Surface treatment contacts : Other
Rated surge voltage (kV) : 4
Reaction-to-fire class according to EN 13501-6 : Eca
