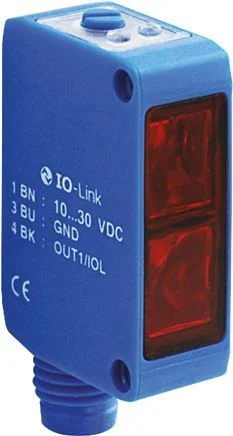

Retroreflective Photoelectric Sensor 10-5000 mm M8 4-pin

In a retroreflective photoelectric sensor, the transmitter and receiver are integrated into one housing. A reflector reflects the light beam back from the transmitter to the receiver. Light beams are interrupted by objects to be acquired, and outputs are connected through them. The color or shape of the object does not affect its function. Compared to the one-way light barrier, the retroreflective photoelectric sensor only requires one active component. This sensor is suitable to work for transparent objects.

Specifications

Operating distance (mm) : 10 mm to 5000 mm
Signal output : PNP
Electrical connection : Connector M8 (4-pin)
Material : ABS
Max. switching distance (mm) : 4200
Max. output current (mA) : 100
Sensor feature : Retroreflective photoelectric sensor for transparent objects
With reflector : Yes
Rated control supply voltage Us at DC (V) : 10 V to 30 V
Degree of protection (IP) : IP67
Sensing mode : Light-/dark switching
Material of optical surface : PMMA
Min. reflector distance (mm) : 20
Ambient temperature (°C) : -20 °C to 65 °C
Height of sensor (mm) : 37
Length of sensor (mm) : 20
Width sensor (mm) : 10
