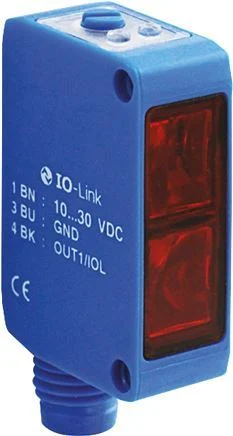

In a retroreflective photoelectric sensor, the transmitter and receiver are integrated into one housing. A reflector reflects the light beam back from the transmitter to the receiver. Light beams are interrupted by objects to be acquired, and outputs are connected through them. The color or shape of the object does not affect its function. Compared to the one-way light barrier, the retroreflective photoelectric sensor only requires one active component.
Specifications
Operating distance (mm) : 20 mm to 8000 mm
Signal output : PNP
Electrical connection : Connector M8 (4-pin)
Material : ABS
Max. switching distance (mm) : 6000
Max. output current (mA) : 100
Sensor feature : Retroreflective photoelectric sensor
With reflector : No
Rated control supply voltage Us at DC (V) : 10 V to 30 V
Degree of protection (IP) : IP67
Sensing mode : Light-/dark switching
Material of optical surface : PMMA
Min. reflector distance (mm) : 30
Ambient temperature (°C) : -20 °C to 65 °C
Height of sensor (mm) : 37
Length of sensor (mm) : 20
Width sensor (mm) : 10
