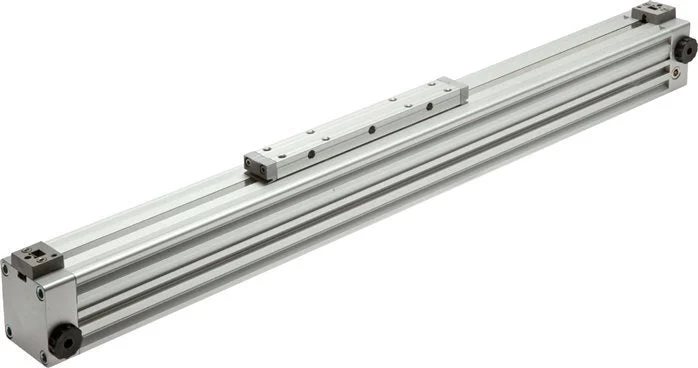

This is a pneumatic rodless cylinder. The rodless cylinder moves the load alongside the piston. This gives the main advantages of having the same stroke length in significantly less space. The bore size is 18 mm and it has a stroke length of 1800 mm. This cylinder has an operating pressure of 2 to 8 bar (29.01 to 116.03 psi). The piston contains a magnetic element. This allows precise position feedback of the rod location by mounting (one or more) magnetic sensors, such as reed or hall sensors. The damping on the both ends of the stroke is adjustable with set screws. The cylinder has two M5 ports for the air routing. The cylinder head, drive rollers and tube are made from anodized aluminum.
Pros:
- The end of the rod stroke can be adjusted for damping
Cons:
- Not suited for icy conditions
Specifications
Cylinder ISO standard : Rodless
Piston diameter (mm) : 18
Stroke (mm) : 1800
Pressure (bar) : 2 bar to 8 bar
Max force in (N) : 137
Max force out (N) : 137
Damping : Adjustable
Sensor mounting style : Dovetail slot
Connection size : M5
Connection type : Inner thread metric
Material : Aluminum
Seal material : NBR/PUR
Temperature (°C) : -20 °C to 80 °C
Magnetic : Yes
Position sensing : For proximity sensor
