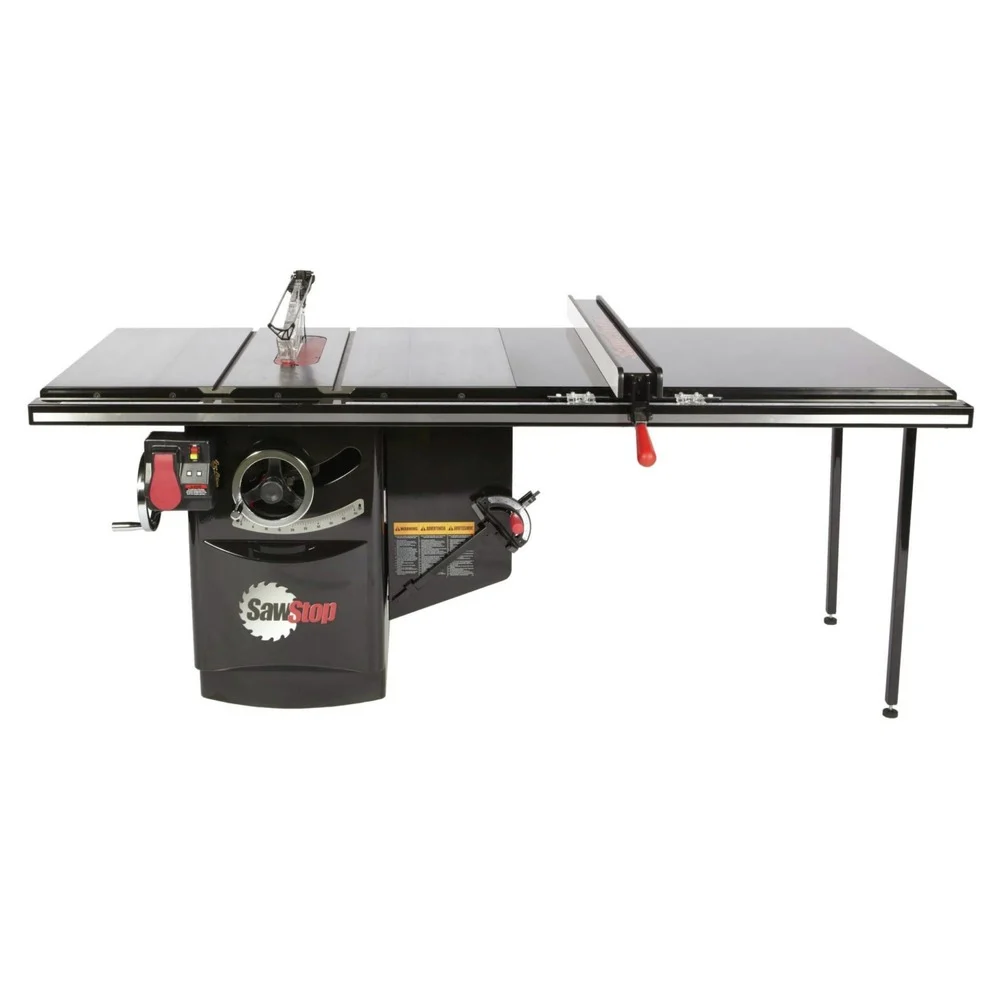

SawStop 230V 3-Phase 7.5 HP Industrial Cabinet Saw with 52 in. Industrial T-Glide Fence System – ICS73230-52

Product Features & specs :

SawStop ICS73230-52 230V 3-Phase 7.5 HP Industrial Cabinet Saw with 52 in. Industrial T-Glide Fence System

Details

The SawStop Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10 in. cabinet saw available. The 7.5HP, 3ph, 230V configuration with a 52 in. Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.

Features:

• 85-1/4 in. W, 36-1/2 in. D, 34 in. H

• Durable craftsmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments

• SawStop Safety System stops on contact with skin

• 52 in. Industrial T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement, and sure lockdown without deflection.

What’s Included:

• 230V 3-Phase 7.5 HP Industrial Cabinet Saw with 52 in. Industrial T-Glide Fence System – ICS73230-52

• (2) Cast Iron Extension Wings

• (1) Miter Gauge

• (1) Dust Collection Blade Guard

• (1) Riving Knife

• (2) Blade Wrenches

• (1) Push Stick

• (1) 10 in. Blade

• (1) Standard Lockdown Insert

• (1) Standard Brake Cartridge

• (2) Hardware Packs

• (1) 3mm Hex Key

• (1) 5mm Hex Key

• (1) 8mm Hex Key

• (1) Blade Spacing Adjustment Gauge

• (1) Owner’s Manual

Power Source

Corded

Dado Blade Width (Max.)

13/16 in

Fence Length

52 in

PreWired Voltage

230V

Table Type

Cast Iron

Wing Type

Cast Iron

Amperage

17.8

UL Safety

No

Fence Type

T-Glide

Rip Capacity (Right)

52 in

Blade Diameter

10 in

Bluetooth Compatibility

No

Blade Tilt

Left

Motor Type

Induction

Dado Blade Diameter (Max.)

8 in

Table Width (w/ Wings)

44 in

Table Width (w/ Extension)

85-1/4 in

Arbor Size

5/8 in

Depth of Cut (45 Degrees)

2-1/4 in

Blade Tilt Range

0 – 45 Degrees

No-Load Speed (RPM)

4000

Depth of Cut (90 Degrees)

3-1/8 in

Max. Rip Capacity (Right)

52 in

CSA Safety

Yes

Max. Rip Capacity (Left)

12-1/2 in

Table Width

24 in

Motor Phase

3

Horsepower

7.5

Voltage

230V

Table Depth

30 in

Rip Capacity (Left)

12-1/2 in

ETL Safety

No

Length

85.5 in.

Width

36.5 in.

Height

34 in.

Depth

36.5 in.

Weight

685 lbs.

Warranty Term

2 Year
