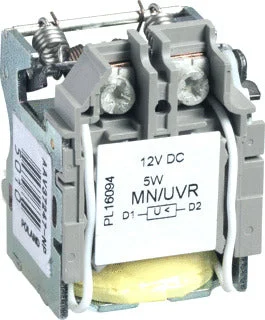

This is a schneider el mn undervoltage release designed for compact nsx circuit breakers, powerpact multistandard, and easypact. Its rated voltage ranges from 380 to 415 V 50/60 Hz or 440 to 48 V 60 Hz. It is used as an auxiliary for remote opening or emergency off. This auxiliary opens circuit breaker if the control voltage falls below 35% of its nominal voltage.
Specifications
Rated control supply voltage Us at AC 50HZ (V) : 380 V to 415 V
Rated control supply voltage Us at AC 60HZ (V) : 440 V to 480 V
Number of contacts as normally open contact : 0
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Voltage type for actuating : AC
Electrical connection : Spring clamp connection
Suitable for power circuit breaker : Yes
Suitable for off-load switch : Yes
Suitable for motor safety switch : Yes
Suitable for overload relay : No
Delayed : No
For model : Compact NSX100-630
