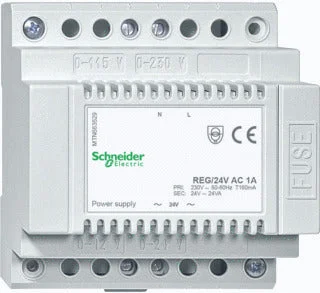

Schneider Electric Merten KNX AC Power Supply 24V AC/1A | MTN663529

Schneider Electric MKNX AC power supply unit (wxdxh), 87.5×66.5x93mm. Protection type (IP) 20. Protection type (NEMA 1) 1, maximum 66.5mm.

Specifications

Voltage type of supply voltage : AC
1st secondary output voltage at AC (V) : 24 V to 24 V
Max. output current 1 (A) : 1
Secondary voltage adjustable : No
Rated voltage AC (V) : 207 V to 253 V
Rated voltage (AC 60 Hz) (V) : 207 V to 253 V
Electrical connection : Screw connection
Output voltage stabilized : No
Power output (W) : 24
Stabilized : No
Short-circuit-proof : No
Degree of protection (IP) : IP20
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : No
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 66.5
Degree of protection (NEMA) : 1
