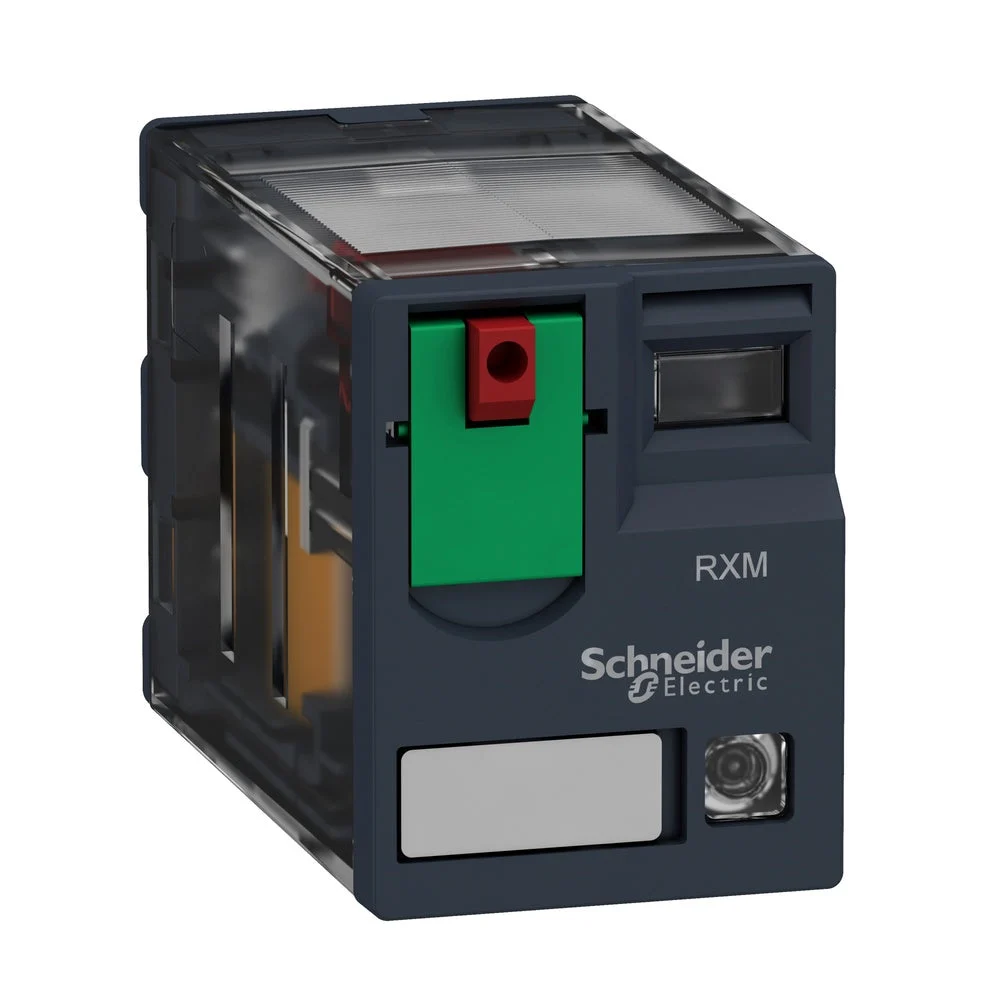

Schneider Electric Zelio Auxiliary Relay – RXM2AB2P7

Schneider Electric Zelio Relay auxiliary relay, (WxDxH) 21x40x27mm, nominal coil voltage Us at AC 50Hz 230V, with plug base, nominal coil voltage Us at AC 60Hz 230V, with LED indication, 2 auxiliary contacts as changeover c, drive fin switching ratio monostable.

Specifications

Rated control supply voltage Us at AC 50HZ (V) : 230 V to 230 V
Rated control supply voltage Us at AC 60HZ (V) : 230 V to 230 V
Voltage type for actuating : AC
Connection type auxiliary circuit : Flat plug-in connection
Mounting method : With plug-in socket
Number of auxiliary contacts as change-over contact : 2
With LED indication : Yes
Manual override : Yes
