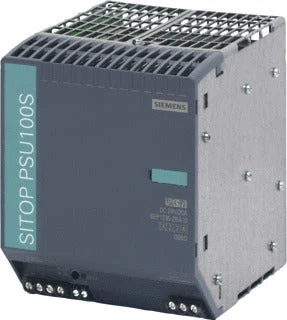

Sitop smart power supply units. The 1 and 3 phase sitop intelligent are the most powerful standard power supply available for plant and machinery engineering. They are compact in design but provide excellent overload response. Loads with high power consumption can be connected to the unit without problems thanks to a 150% power boost. The 120% permanent overload capability provides power reserves for expansions. The control cabinet’s high efficiency ensures that there is minimal heat and energy consumption.
Specifications
Voltage type of supply voltage : AC
1st secondary output voltage at DC (V) : 24 V to 24 V
Max. output current 1 (A) : 20
Secondary voltage adjustable : Yes
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 20
Rated voltage AC (V) : 230 V to 230 V
Rated voltage (AC 60 Hz) (V) : 120 V to 120 V
Electrical connection : Screw connection
Output voltage stabilized : Yes
Power output (W) : 480
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 245
Built-in width (mm) : 120
