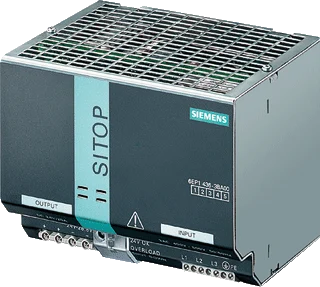

Siemens SITOP DC Power Supply 24V | 6EP13363BA00

Siemens SITOP DC power supply unit, (wxdxh 160x125x125mm), 1st Secondary voltage 24V. Voltage type AC. Nominal supply voltage AC 50 Hz. 230V.

Specifications

Voltage type of supply voltage : AC
1st secondary output voltage at DC (V) : 24 V to 24 V
Max. output current 1 (A) : 20
Secondary voltage adjustable : Yes
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 20
Rated voltage AC (V) : 230 V to 230 V
Rated voltage (AC 60 Hz) (V) : 120 V to 120 V
Electrical connection : Screw connection
Output voltage stabilized : Yes
Power output (W) : 480
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Refurbished : No
Modular version : Yes
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : Yes
Built-in height (mm) : 225
Built-in width (mm) : 160
