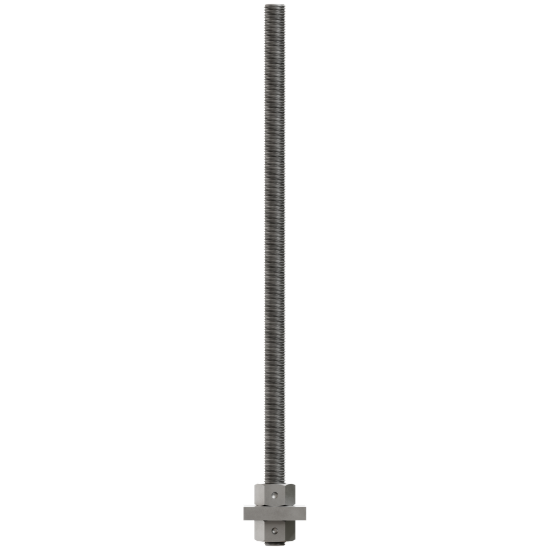

Simpson PAB 1-1/4″ x 36″ Pre-Assembled Anchor Bolt w/ Washer

Description

The Simpson Strong-Tie PAB anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.

• Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
• Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
• Rod diameter: 1-1/4 in.
• Rod length: 36 in.
• Material: Steel – ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi

Features

• Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
• Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
• Rod diameter: 1-1/4 in.
• Rod length: 36 in.
• Material: Steel – ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi
