Description

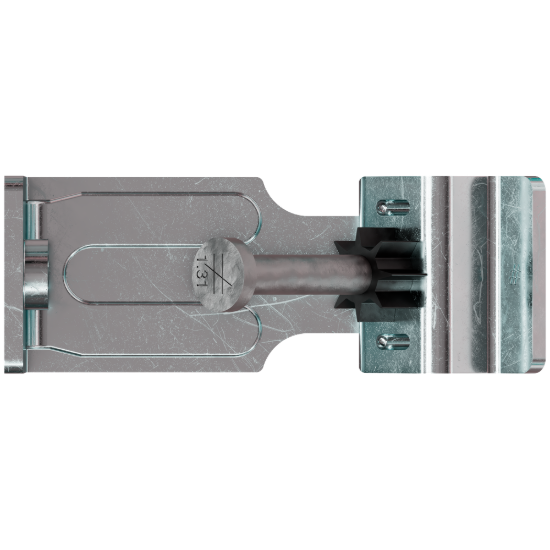

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort. The PTRHA is powder-actuated assembly designed to attach threaded rod to concrete. The PTRHA consists of a 1-5/16 in. x 0.157-in. shank fastener attached to a 14-ga. threaded rod clip. The PTRHA is compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools.
- The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
Features
- The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
- 0.300-in. pin head diameter
- 0.157-in. pin shank diameter
- 1-5/16 in. pin length
- Accepts 1/4-in. -20 threaded rod
Specifications
| Pin Head Diameter | 0.300 inch | Pin Shank Diameter | 0.157 inch |
| Pin Length | 1-5/16 inch | Threaded Rod Size | 1/4 inch -20 |
