Description

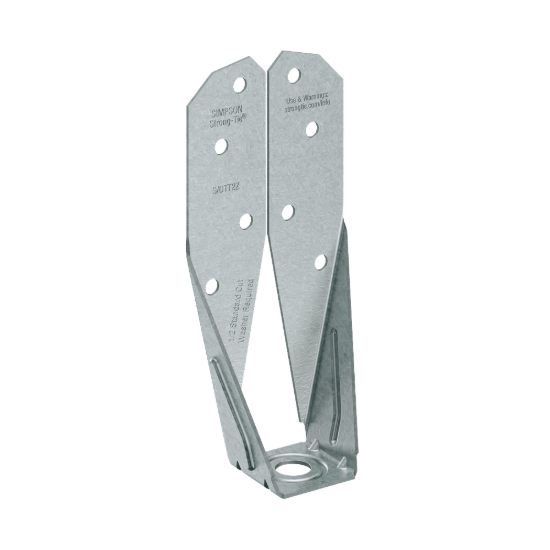

Simpson Strong-Tie cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The S/DTT is suitable for lighter-duty hold-down (holdown) applications on single or back-to-back studs and installs easily with #14 self-drilling screws. This light tension tie is ideal for retrofit or new construction projects, providing high-strength, post-pour, concrete-to-steel connections.
- Can be installed with cast-in-place or post-installed anchor bolts
- Short profile height
- Base width and depth 1-5/8 in. x 1-5/8 in.
- Height: 6-15/16 in.
- Made from 68-mil (14-gauge) steel
- ZMAX coating offers extra corrosion resistance
Features
- Can be installed with cast-in-place or post-installed anchor bolts
- Short profile height
- Base width and depth 1-5/8 in. x 1-5/8 in.
- Height: 6-15/16 in.
- Made from 68-mil (14-gauge) steel
- ZMAX coating offers extra corrosion resistance
Specifications
| Base Width | 1-5/8 inch | Base Depth | 1-5/8 inch |
| Height | 6-15/16 inch | Material | 68-mil (14-gauge) steel |
| Coating | ZMAX |
