Description

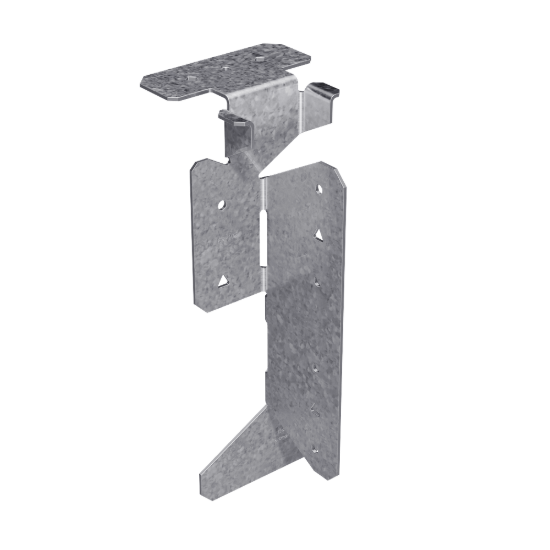

The Simpson Strong-Tie S/JCT is a skewable steel-joist framing connector that combines strength, versatility and reduced installed cost. The hanger can be used with CFS headers, wood headers, steel I-beams (with welds or PAT fasteners) and masonry walls. Installed cost is minimized since these products are designed for shear loads rather than bearing, eliminating the need for web stiffeners. Framing is unidirectional and the joist can be attached from either the left or the right side.
- Min./max. fill hole options for load capacity options
- Field skewable up to 45 left or right
- Horizontal tabs facilitate top-flange alignment and joist support during screw installation
- One size fits joists 8-in. through 14-in. deep
- Made from 68-mil (14-gauge) steel
- Galvanized (G90) for corrosion resistance
Features
- Min./max. fill hole options for load capacity options
- Field skewable up to 45 left or right
- Horizontal tabs facilitate top-flange alignment and joist support during screw installation
- One size fits joists 8-in. through 14-in. deep
- Made from 68-mil (14-gauge) steel
- Galvanized (G90) for corrosion resistance
Specifications
| Material | 68-mil (14-gauge) steel | Finish | Galvanized (G90) |
| Skew Angle | Up to 45 deg left or right | Joist Depth Range | 8-in. through 14-in. |
