Description

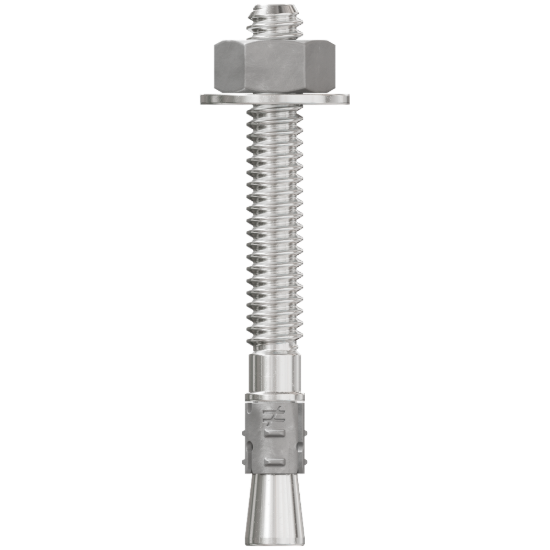

The Simpson Strong-Tie Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 stainless-steel wedge anchor offers long-lasting corrosion resistance for a wide variety of service environments.
- Code listed for uncracked concrete applications
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Tested per ACI355.2 and AC193
Features
- Code listed for uncracked concrete applications
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Tested per ACI355.2 and AC193
- Size: 1/4 in. x 2-1/4 in.
Specifications
| Size | 1/4 inch x 2-1/4 inch |
