Description

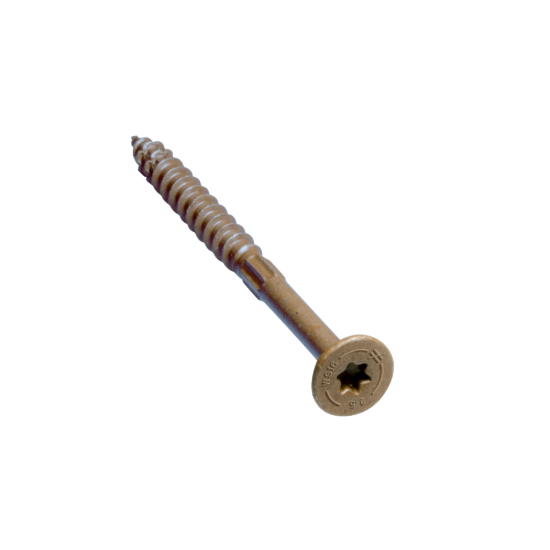

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC and IBC code requirements for several common wood framing applications.
- Large head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.450-in. head dia.)
- SawTooth Type-17 tip for quick starts with no predrilling
- Serrated threads reduce installation torque for easier driving
- The 6-lobe drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
- Driver bit included (BIT25T-2-R2)
- Length: 2-1/2 in.
Features
- Large head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.450-in. head dia.)
- SawTooth Type-17 tip for quick starts with no predrilling
- Serrated threads reduce installation torque for easier driving
- The 6-lobe drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
- Driver bit included (BIT25T-2-R2)
- Length: 2-1/2 in.
Includes
- Driver bit (BIT25T-2-R2)
Specifications
| Diameter | 0.160 inch | Head Diameter | 0.450 inch |
| Length | 2-1/2 inch | Drive Type | 6-lobe |
| Tip Type | SawTooth Type-17 | Thread Type | Serrated |
| Code Listing | IAPMO UES ER-192 | Code Compliance | 2018 and 2021 IRC and IBC |
