- High capacity
- Concealed for architectural aesthetics and fire-rated performance
- One- and two-hour fire resistance ratings per ASTM E119
- Recommended for use at beam-to-beam connections in any Seismic Design Category, and at beam-to-column connections in Seismic Design Category A or B
- Multiple router options to suit jobsite needs
- Beam length tolerance of +/- 1/16 in. on each end enables easier installation
- Width: 3 in.
- Height: 15-3/8 in.
- Kit contains (2) backplates that make up (1) connection and (48) Strong-Drive SDCF22614 screws

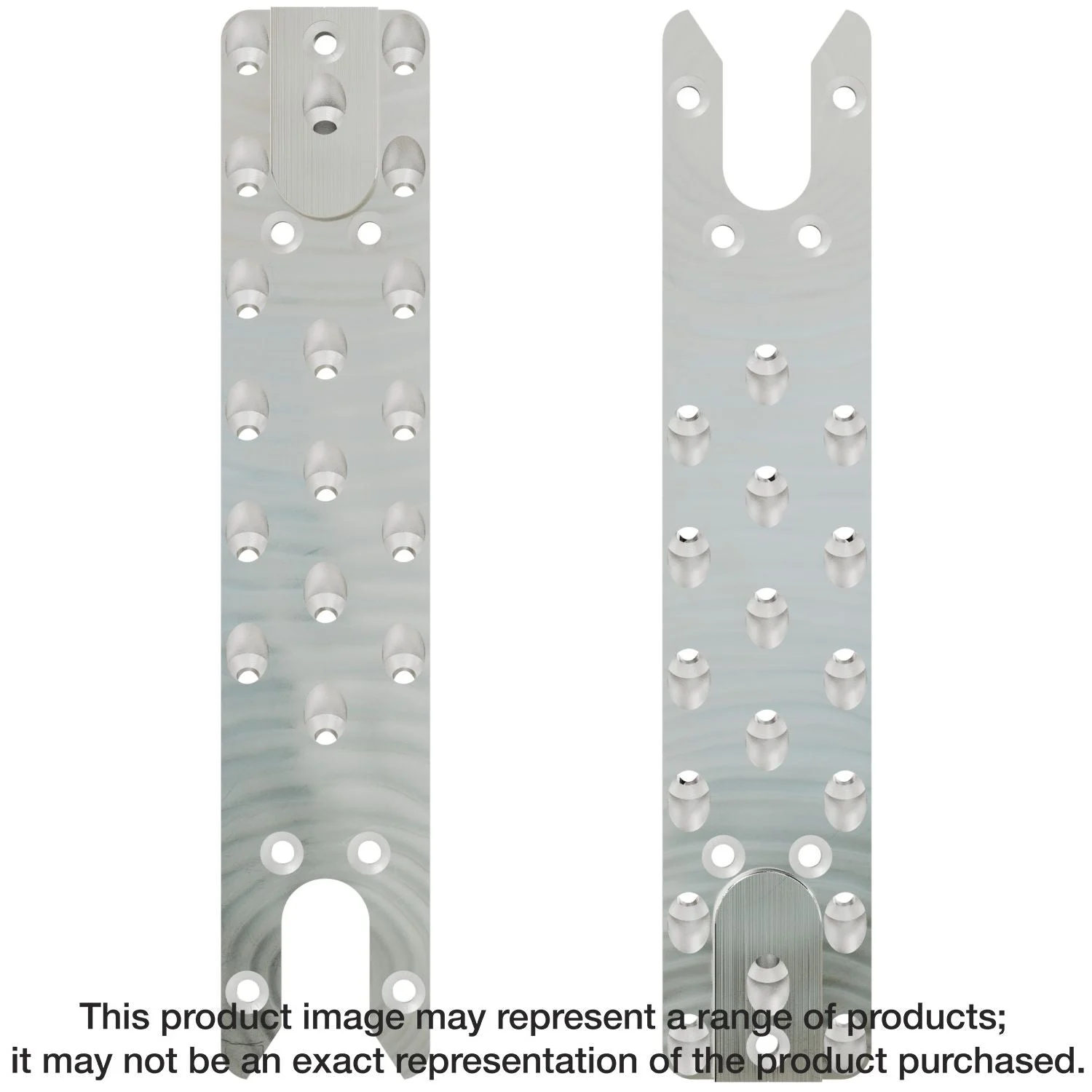

The ACBH concealed beam hanger is made for the rigors of mass timber construction and is machined from aluminum for a high-capacity design. With an allowable stress design load capacity of up to 20 kips, it is the strongest connector in the Simpson Strong-Tie line of concealed end-grain beam hangers. Its concealed connection allows for a wood-only aesthetic while offering one- and two-hour fire resistance ratings per ASTM E119. This hanger installs easily in the factory using fully threaded Strong-Drive SDCF Timber-CF structural screws and offers generous onsite fit-up tolerance for smooth and easy beam installation. The ACBH is manufactured and stocked in the US for reliable availability.
- High capacity
- Concealed for architectural aesthetics and fire-rated performance
- One- and two-hour fire resistance ratings per ASTM E119
- Recommended for use at beam-to-beam connections in any Seismic Design Category, and at beam-to-column connections in Seismic Design Category A or B
- Multiple router options to suit jobsite needs
- Beam length tolerance of +/- 1/16 in. on each end enables easier installation
- Width: 3 in.
- Height: 15-3/8 in.
- Kit contains (2) backplates that make up (1) connection and (48) Strong-Drive SDCF22614 screws
Install With: (48) Strong-Drive SDCF22614 screws (included)
Reviews
There are no reviews yet.
