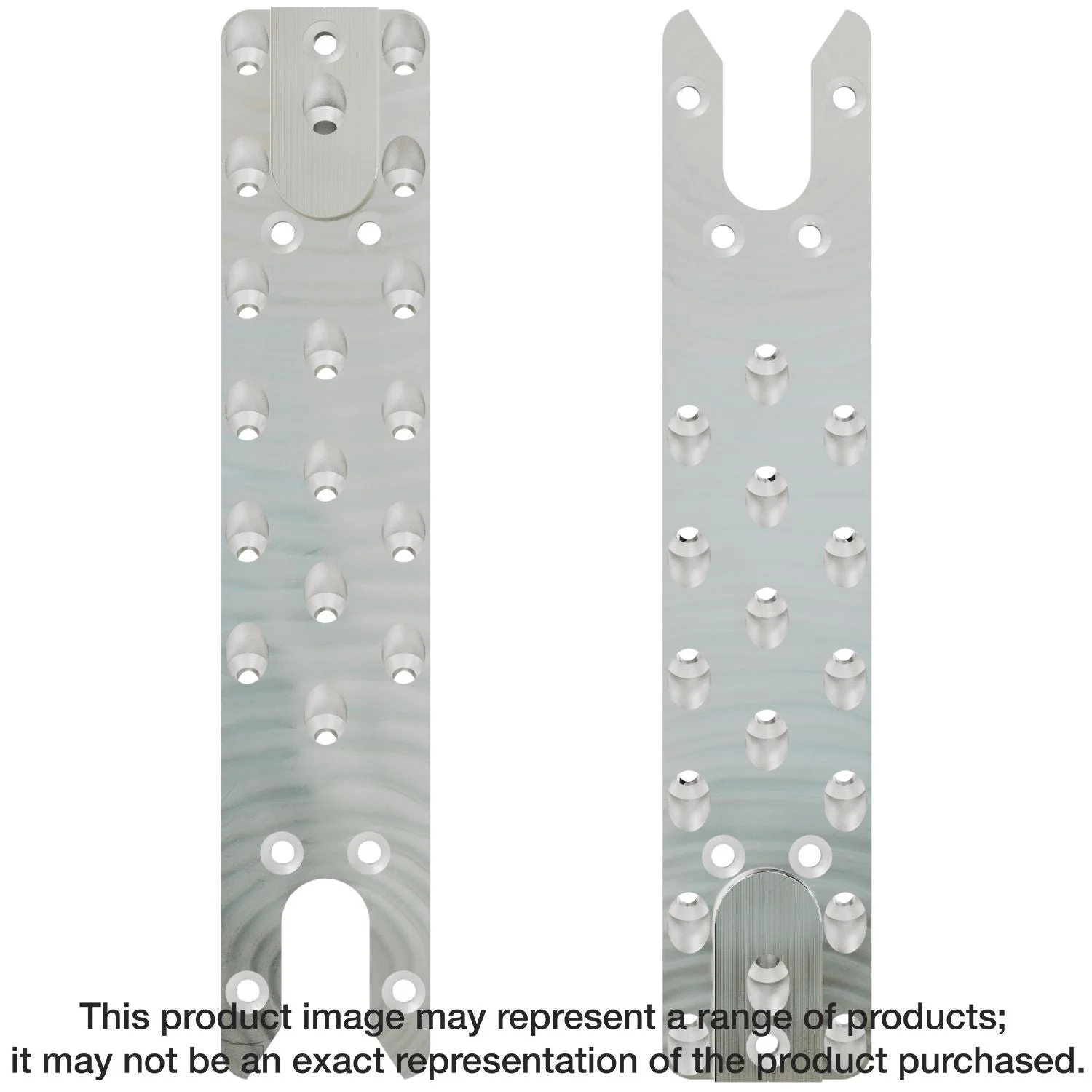

Simpson Strong-Tie ACBH3X15.37-R8 ACBH 3-in. x 15-3/8-in. Joist-to-Beam Concealed Hanger, 8-Pack

• High capacity
• Concealed for architectural aesthetics and fire-rated performance
• One- and two-hour fire resistance ratings per ASTM E119
• Recommended for use at beam-to-beam connections in any Seismic Design Category, and at beam-to-column connections in Seismic Design Category A or B
• Multiple router options to suit jobsite needs
• Beam length tolerance of +/- 1/16 in. on each end enables easier installation
• Width: 3 in.
• Height: 15-3/8 in.
• Contains (16) backplates for (8) connections (screws not included)

The ACBH concealed beam hanger is made for the rigors of mass timber construction and is machined from aluminum for a high-capacity design. With an allowable stress design load capacity of up to 20 kips, it is the strongest connector in the Simpson Strong-Tie line of concealed end-grain beam hangers. Its concealed connection allows for a wood-only aesthetic while offering one- and two-hour fire resistance ratings per ASTM E119. This hanger installs easily in the factory using fully threaded Strong-Drive SDCF Timber-CF structural screws and offers generous onsite fit-up tolerance for smooth and easy beam installation. The ACBH is manufactured and stocked in the US for reliable availability.

• High capacity
• Concealed for architectural aesthetics and fire-rated performance
• One- and two-hour fire resistance ratings per ASTM E119
• Recommended for use at beam-to-beam connections in any Seismic Design Category, and at beam-to-column connections in Seismic Design Category A or B
• Multiple router options to suit jobsite needs
• Beam length tolerance of +/- 1/16 in. on each end enables easier installation
• Width: 3 in.
• Height: 15-3/8 in.
• Contains (16) backplates for (8) connections (screws not included)

Install With: Each of the (8) pairs of backplates is installed with (48) Strong-Drive SDCF22614 screws; (384) total screws required (screws not included)
