- Cost-effective one-piece design compared to welded hangers
- A full-height joist flange that captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
- Available for special order to accommodate sloped and/or skewed members
- Nominal joist size: 2×12
- Made from 12-gauge steel
- Galvanized (G90) for corrosion resistance

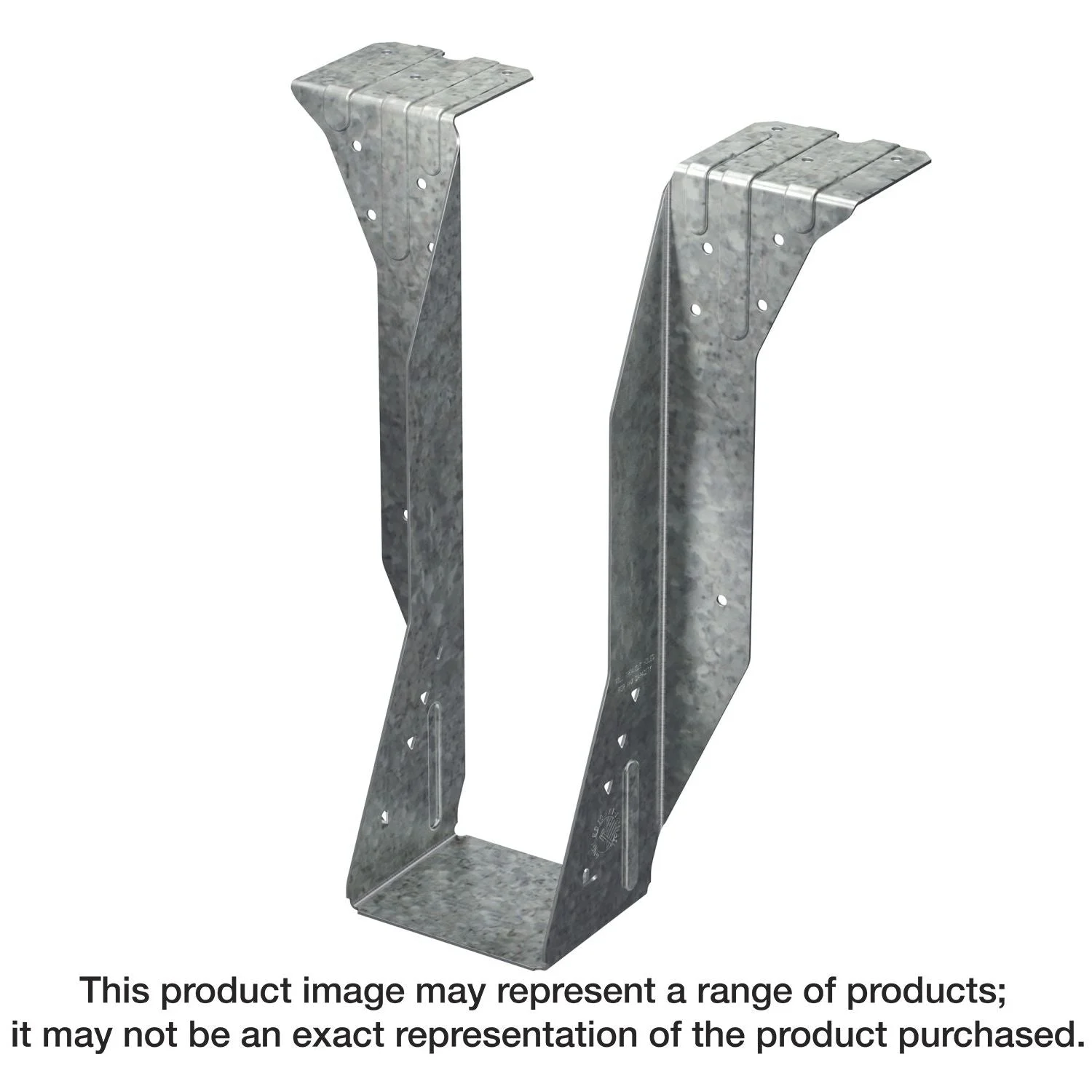

The Simpson Strong-Tie BA hanger series is designed for engineered wood and solid sawn lumber applications. This top-flange hanger can carry medium loads with solid sawn lumber and higher loads with engineered wood products. The BA features minimum nailing with positive-angle nailing (PAN) to target moderate load conditions and maximum nailing to support higher loads.
- Cost-effective one-piece design compared to welded hangers
- A full-height joist flange that captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
- Available for special order to accommodate sloped and/or skewed members
- Nominal joist size: 2×12
- Made from 12-gauge steel
- Galvanized (G90) for corrosion resistance
Install With: Install with (16) 0.162 in. x 3-1/2 in. nails in the header and (8) 0.148 in. x 1-1/2 in. nails in the joist
