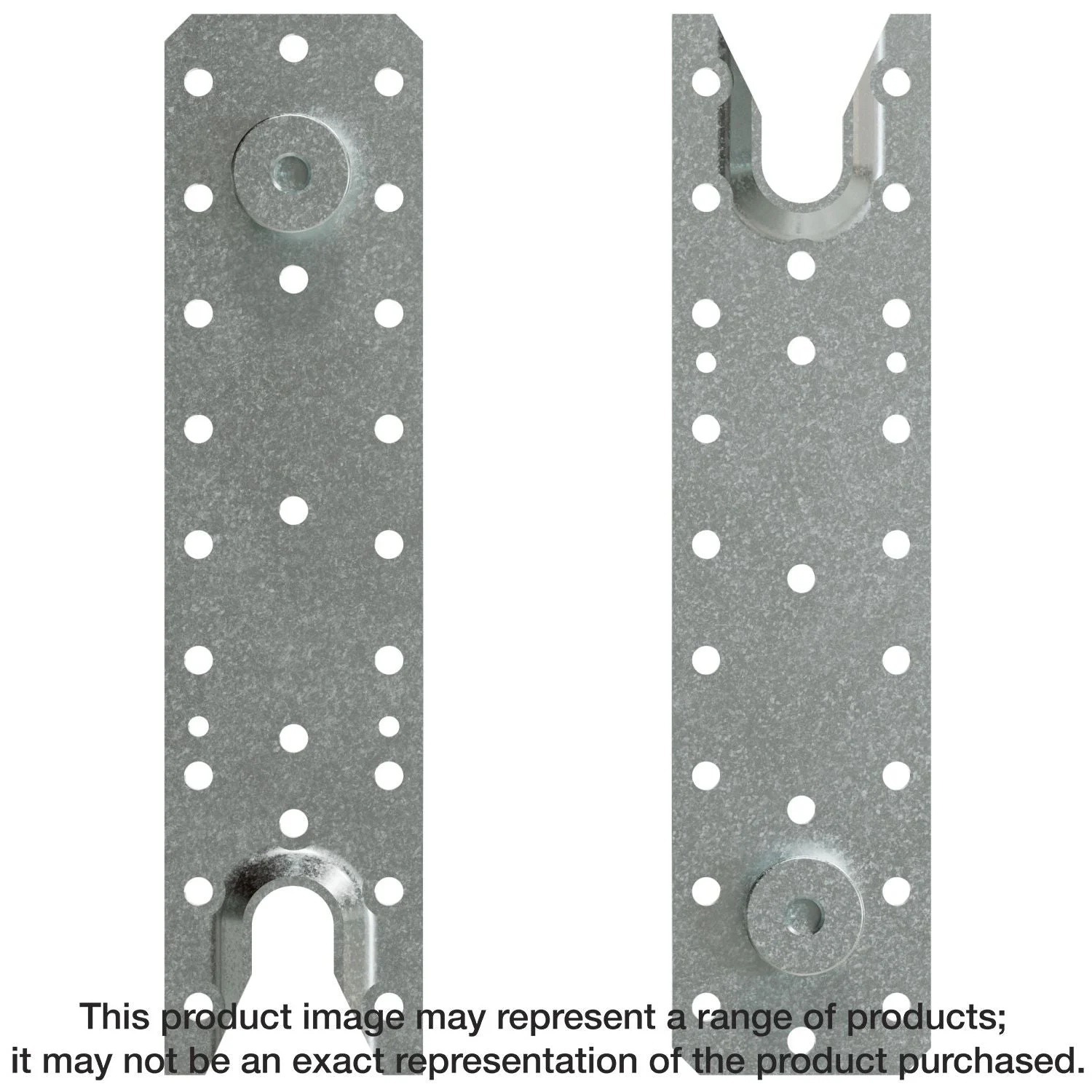

Simpson Strong-Tie CBH2.37X7.63-R10 CBH 2-3/8-in. x 7-5/8-in. Joist to Beam or Column Concealed Hanger, 10-Pack

• Concealed for architectural aesthetics and fire-rated performance
• Multiple router options to suit jobsite needs
• The +/- 1/32-in. beam length tolerance on each end enables easier installation
• 1-hr and 2-hr fire resistance ratings per ASTM E119
• Inter-story drift performance tested to over 2%
• Code-listed per ICC-ESR-2552
• 2-3/8 in. width x 7-5/8 in. height
• Made from 3-gauge steel; electro-galvanized finish
• (20) backplates make (10) connections (screws not included)

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.

• Concealed for architectural aesthetics and fire-rated performance
• Multiple router options to suit jobsite needs
• The +/- 1/32-in. beam length tolerance on each end enables easier installation
• 1-hr and 2-hr fire resistance ratings per ASTM E119
• Inter-story drift performance tested to over 2%
• Code-listed per ICC-ESR-2552
• 2-3/8 in. width x 7-5/8 in. height
• Made from 3-gauge steel; electro-galvanized finish
• (20) backplates make (10) connections (screws not included)

Install With: Each of the (10) connections requires (18) Strong-Drive SDS25300 screws and (18) Strong-Drive SDS25600 screws for joist-to-beam application OR (36) Strong-Drive SDS25600 screws for joist-to-column application
