- Flattened sides assist installer while using the CBTZ as a template
- Locator tabs provide proper dimensional layout
- Required dowel pins included
- Orientation markings distinguish which end installs into the post and which end goes into the beam
- Dimensions: 1-1/4 in. x 10 in.
- Sized for a nominal 4×4 post
- Made from 12-gauge steel
- ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
- 1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55

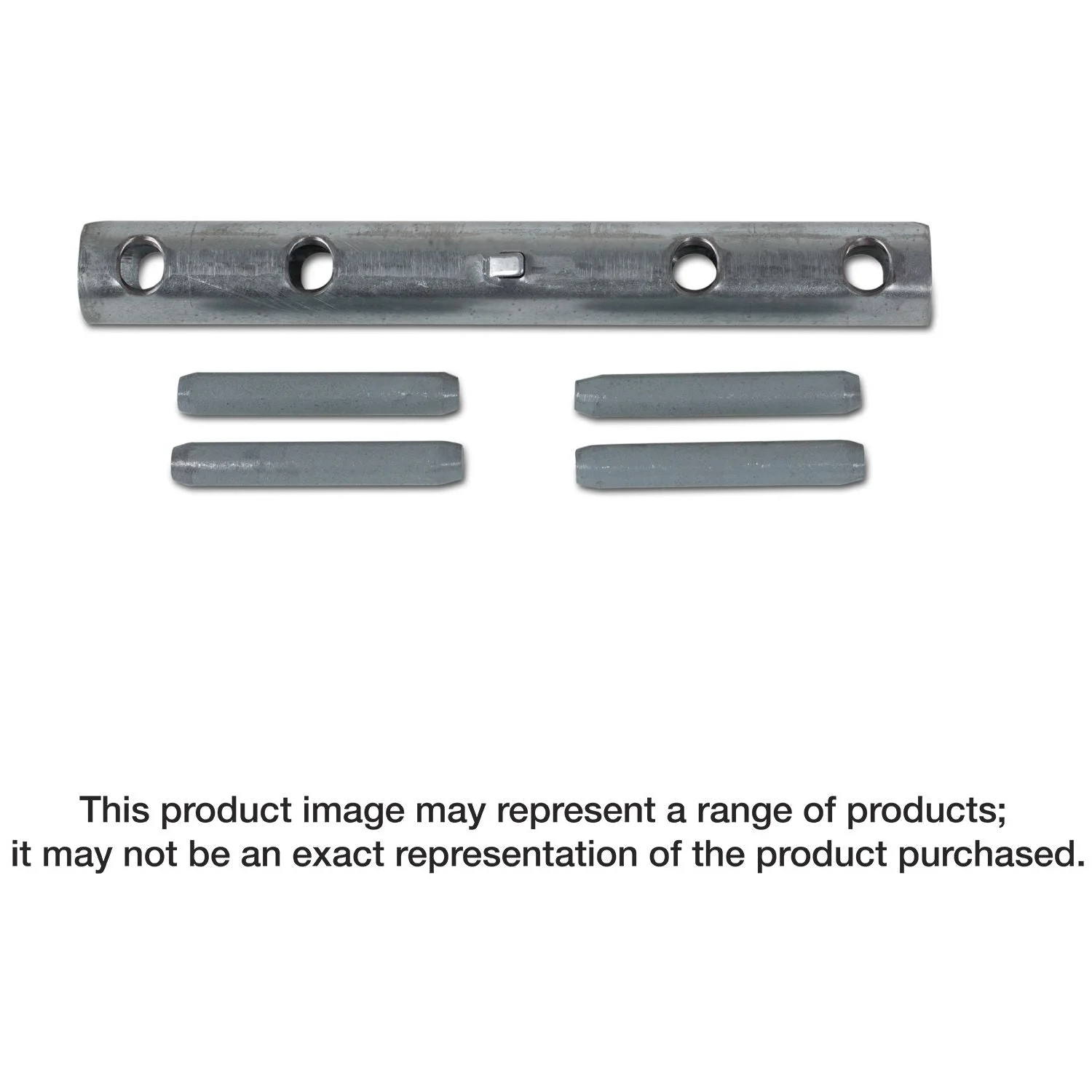

The Simpson Strong-Tie CBTZ™ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.
- Flattened sides assist installer while using the CBTZ as a template
- Locator tabs provide proper dimensional layout
- Required dowel pins included
- Orientation markings distinguish which end installs into the post and which end goes into the beam
- Dimensions: 1-1/4 in. x 10 in.
- Sized for a nominal 4×4 post
- Made from 12-gauge steel
- ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
- 1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55
Install With: Install with (4) 1/2 in. x 3-1/4 in. dowels (included) or 1/2 in. bolts
