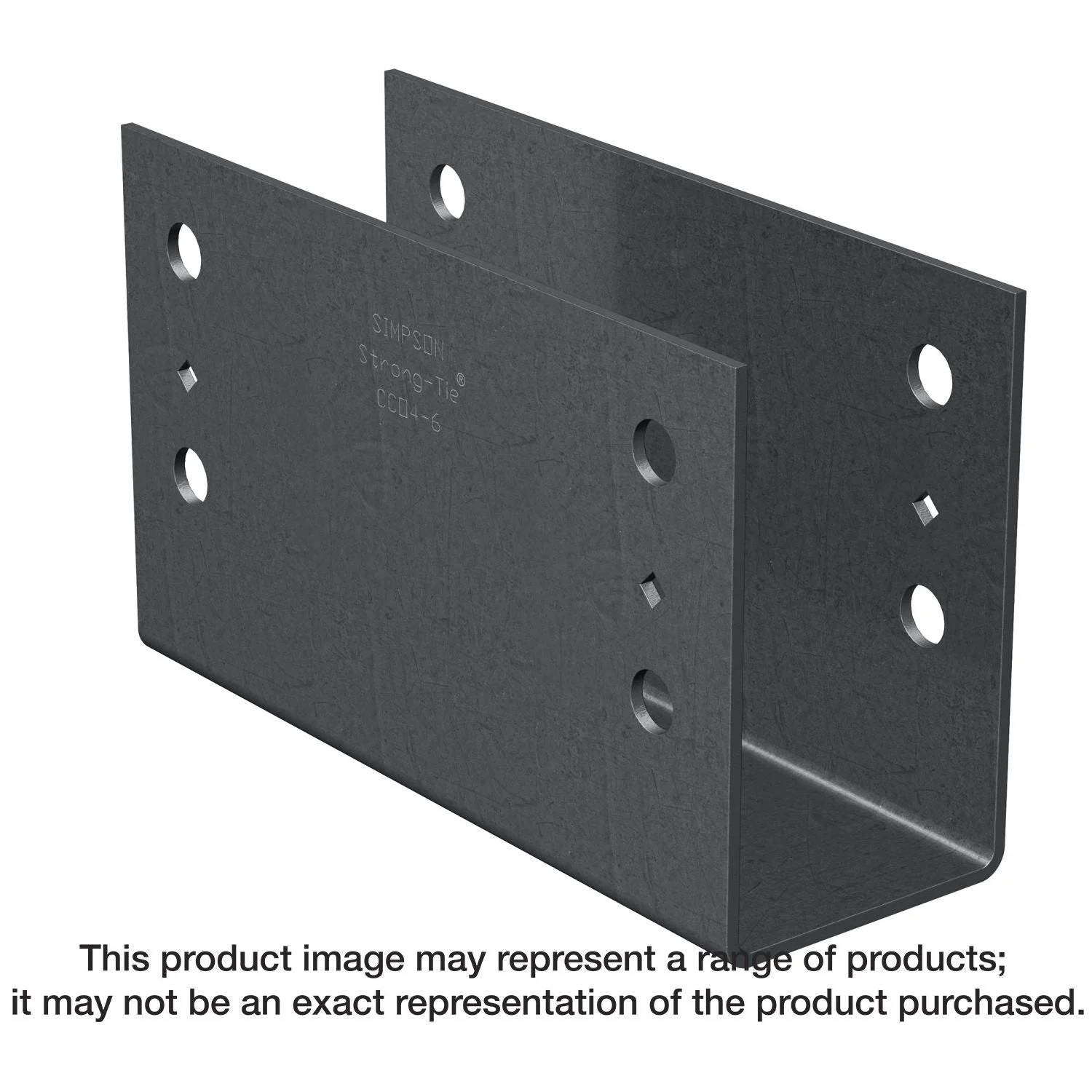

Simpson Strong-Tie CCO4 CCO Column Cap, No Legs, for 4x Beam, 4-in. Height

• Uplift loads increased for earthquake or wind loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening
• For nominal 4x or 3-1/2 in. beam width
• Cap height of 4 in.
• Made from 7-gauge uncoated steel

The Simpson Strong-Tie CCO is designed to provide strong column-beam connections using steel columns. The column cap features a design without legs enabling a field-welded attachment to steel columns and posts. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column helping to distribute the load from the beam and provide support for the connection.

• Uplift loads increased for earthquake or wind loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening
• For nominal 4x or 3-1/2 in. beam width
• Cap height of 4 in.
• Made from 7-gauge uncoated steel

Install With: (2) 5/8 in. diameter machine bolts
