- Provides adequate bearing length for larger girder reactions
- Sizes available for both solid sawn lumber and engineered wood products
- Self-tapping screws included
- Seat width: 4-5/8 in.
- Beam width: Triple 2×10, triple 2×12
- Made from 7-gauge steel
- Galvanized (G90) for corrosion resistance

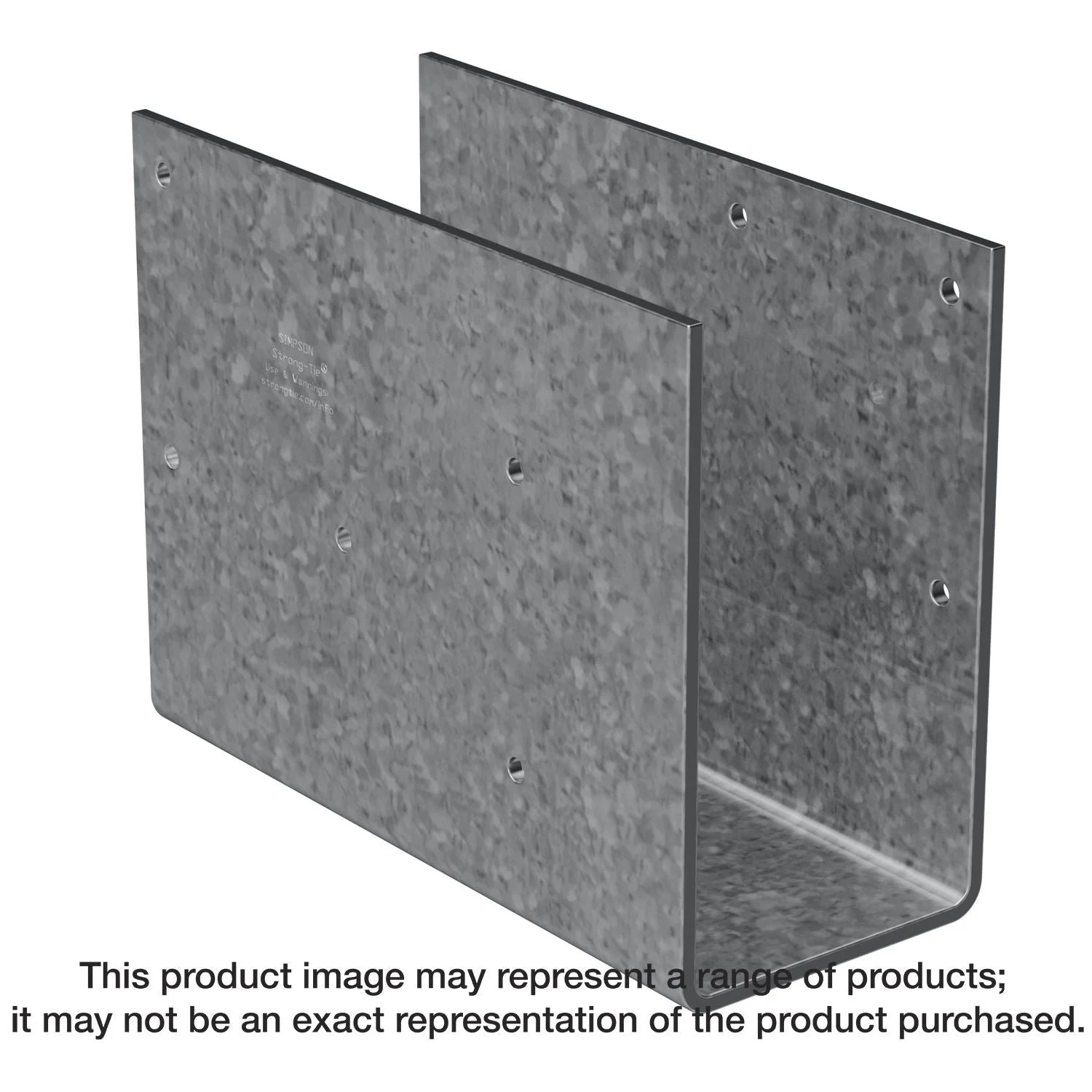

The Simpson Strong-Tie CCOS steel-column cap provides a high-capacity connection for column-to-beam combinations. This design without the column straps was created specifically for field welding to a steel column. For faster installation, the CCOS requires that self-tapping screws (included) be used to attach the column cap to the column cap plate.
- Provides adequate bearing length for larger girder reactions
- Sizes available for both solid sawn lumber and engineered wood products
- Self-tapping screws included
- Seat width: 4-5/8 in.
- Beam width: Triple 2×10, triple 2×12
- Made from 7-gauge steel
- Galvanized (G90) for corrosion resistance
Install With: Attach steel column cap to column end plate with (4) self-tapping screws (included) and 5/16 in. hex driver; attach to girder with 0.148 in. x 3 in. nails
