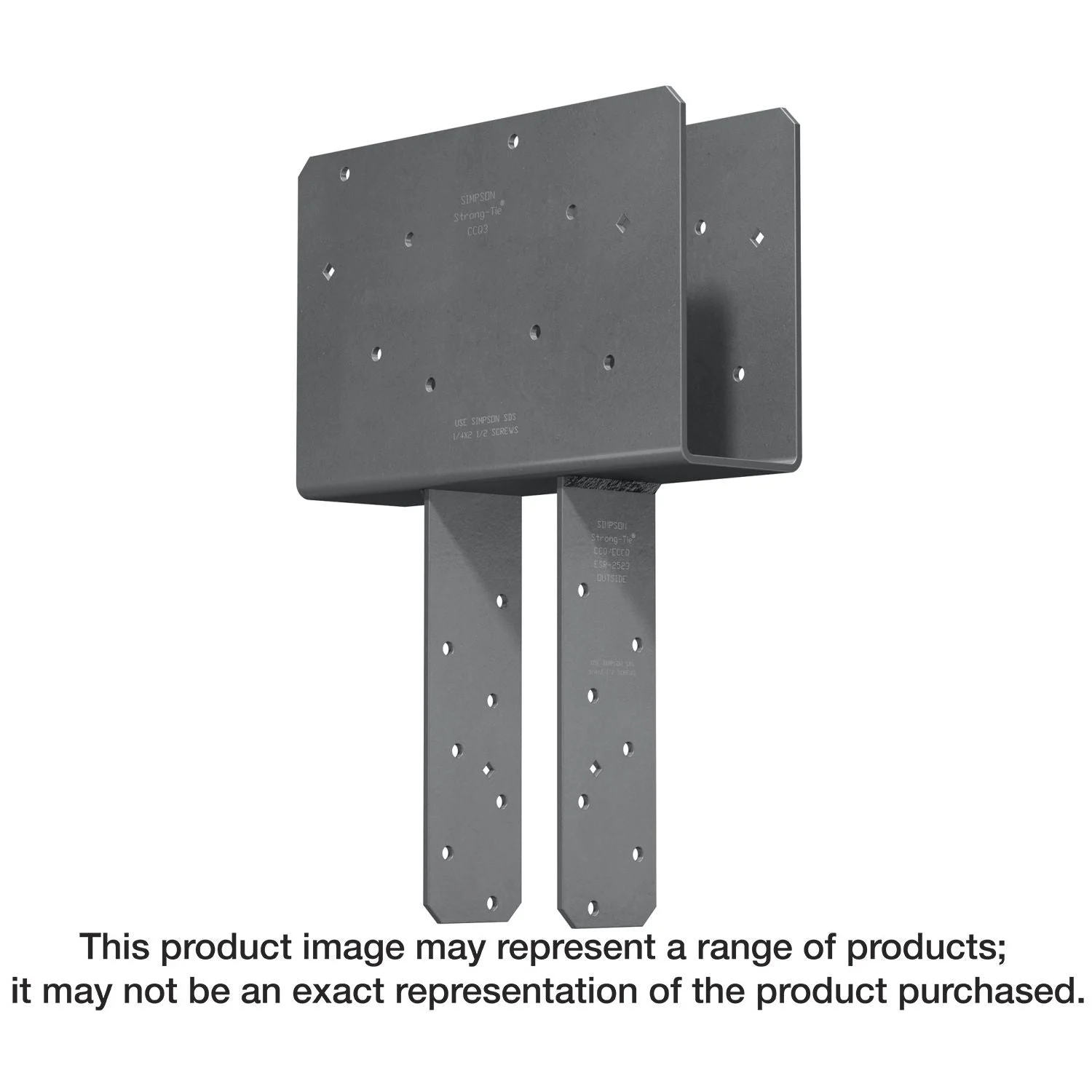

Simpson Strong-Tie CCQ4.62-5.50HDG CCQ HDG Column Cap for Triple-2x Beam, 6x Post with Strong-Drive SDS Screws

• The SDS screws provide a lower profile than standard through bolts
• Certified welds for confidence in strength and loading
• Uplift loads have been increased for earthquake or wind loading
• Diamond holes for temporary fastening
• Beam width: 4-1/2 in.
• Nominal post size: 6x
• Made from 7-gauge steel
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Simpson Strong-Tie column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The CCQ™ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.

• The SDS screws provide a lower profile than standard through bolts
• Certified welds for confidence in strength and loading
• Uplift loads have been increased for earthquake or wind loading
• Diamond holes for temporary fastening
• Beam width: 4-1/2 in.
• Nominal post size: 6x
• Made from 7-gauge steel
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Install With: Install with (30) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
