- Rough beam sizes are available by special order
- The hanger can be skewed a maximum of 45° or sloped downward to a maximum of 45°
- HUTF-series hangers are tested, load rated and code compliant
- Seat width: 3-9/16 in.
- Nominal joist size: 4×8
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance

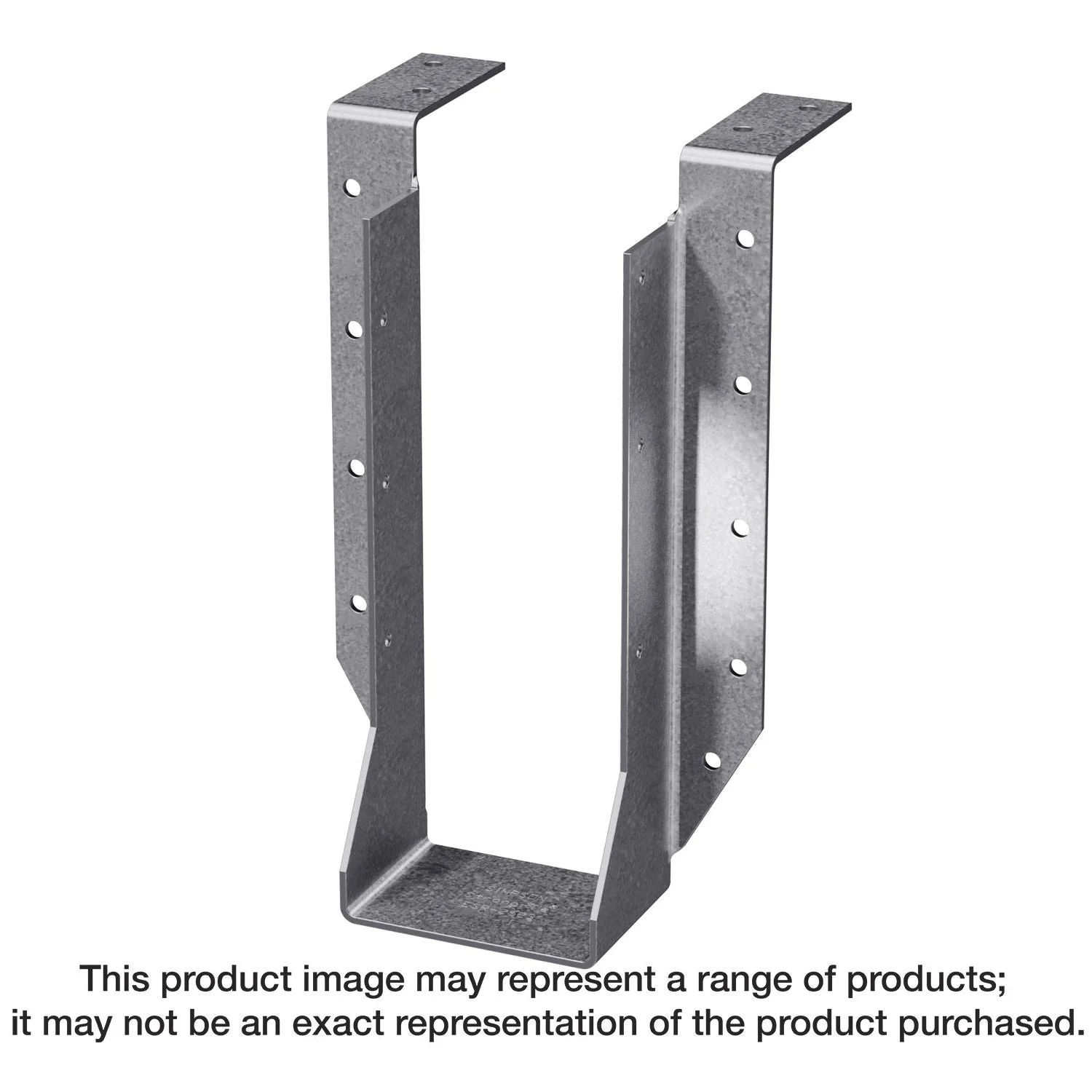

Simpson Strong-Tie top-flange hangers are an integral component for providing maximum down loads with a minimum number of fasteners. The HUTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger features face-nailing that allows the hanger to be securely attached to the member.
- Rough beam sizes are available by special order
- The hanger can be skewed a maximum of 45° or sloped downward to a maximum of 45°
- HUTF-series hangers are tested, load rated and code compliant
- Seat width: 3-9/16 in.
- Nominal joist size: 4×8
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with (12) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 3 in. nails in the joist
