- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- Install wood joists to wood, masonry and concrete
- Seat width: 3-9/16 inches
- Nominal joist size: 4×4
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

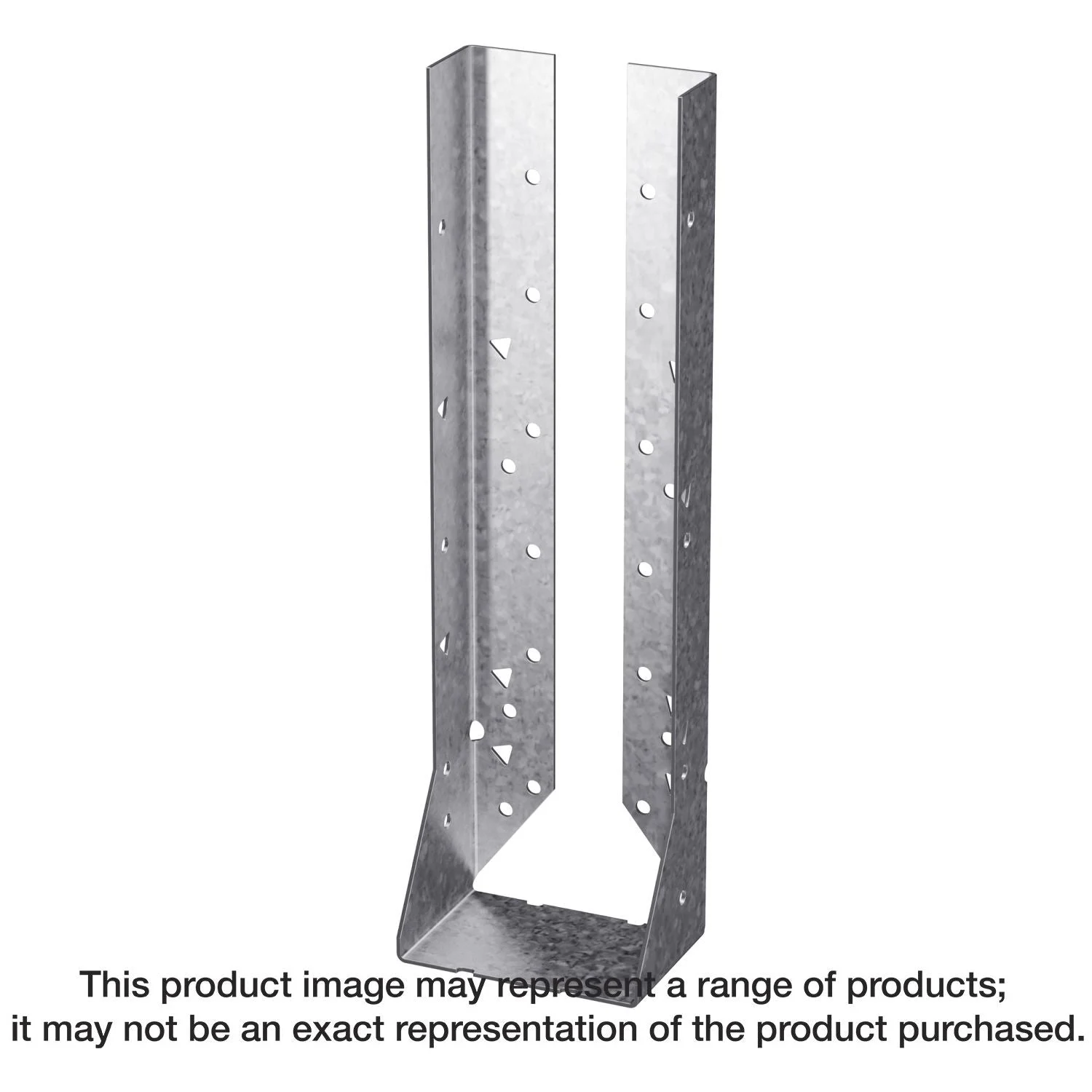

The Simpson Strong-Tie HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- Install wood joists to wood, masonry and concrete
- Seat width: 3-9/16 inches
- Nominal joist size: 4×4
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist
