- Rough beam sizes are available by special order
- The hanger can be sloped a maximum of 45°, with no skew options available
- HUCTF-series hangers are tested, load rated and code compliant
- Nominal joist size: 4×8
- Made from 12-gauge steel
- Galvanized (G90) for corrosion resistance

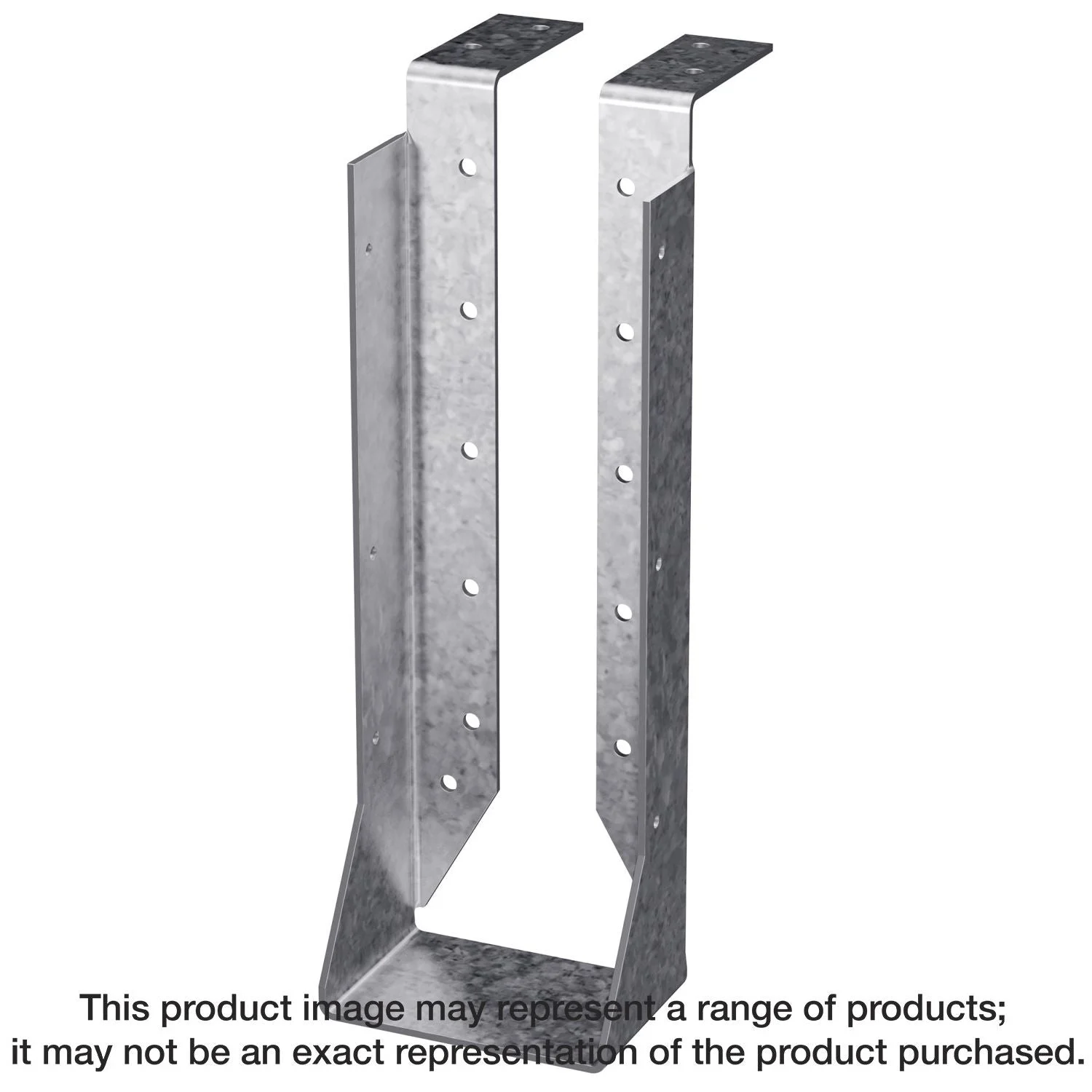

The Simpson Strong-Tie HUCTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger is designed with two concealed flanges for end-of-wall or corner installation. The HUCTF features face-nailing that allows the hanger to be securely attached to the member.
- Rough beam sizes are available by special order
- The hanger can be sloped a maximum of 45°, with no skew options available
- HUCTF-series hangers are tested, load rated and code compliant
- Nominal joist size: 4×8
- Made from 12-gauge steel
- Galvanized (G90) for corrosion resistance
Install With: Installs with (12) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 3 in. nails in the joist
