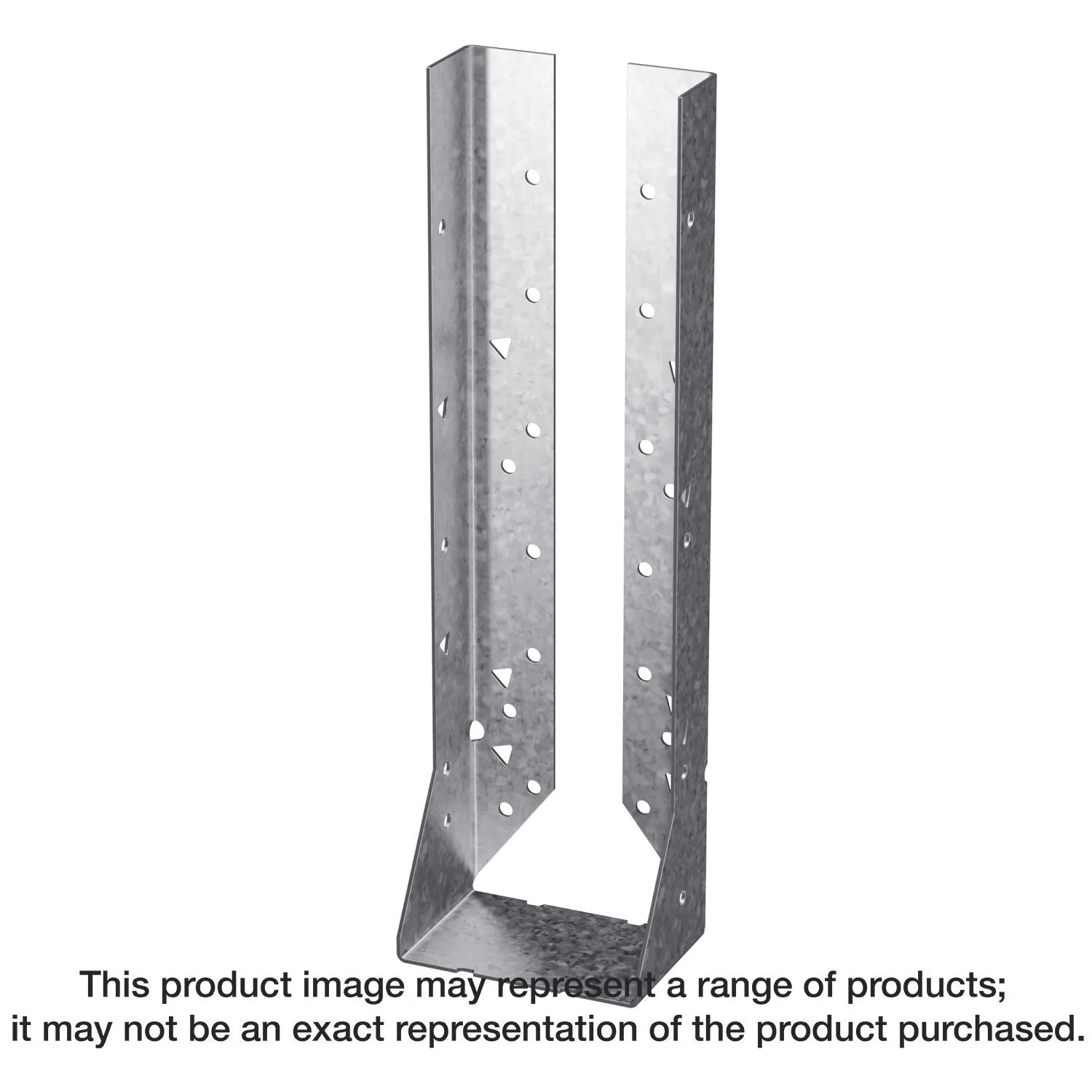

Simpson Strong-Tie HUC48Z HUC ZMAX Galvanized Face-Mount Concealed-Flange Joist Hanger for 4×8

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Seat width: 3-9/16 in.
• Nominal joist size: 4×8
• Made from 14-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Seat width: 3-9/16 in.
• Nominal joist size: 4×8
• Made from 14-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install With: (10-14) 0.162 in. x 3-1/2 in. nails in the header and (4-6) 0.148 in. x 3 in. nails in the joist OR (20) #10 x 1-1/2 in. Strong-Drive SD Connector screws
