- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- Install wood joists to wood, masonry and concrete
- Seat width: 5-1/2 in.
- Nominal joist size: 6×6
- Made from 14-gauge steel
- Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

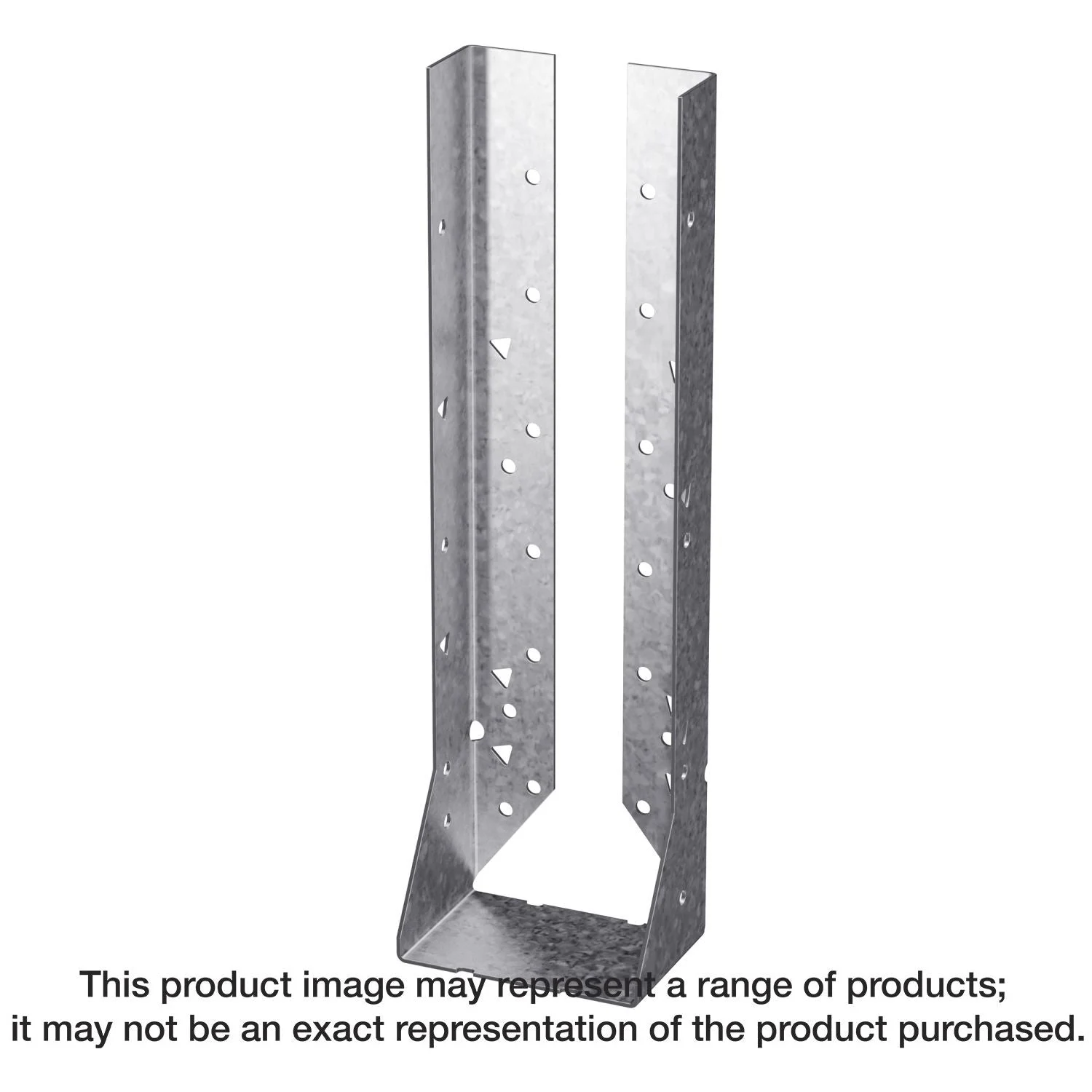

The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- Install wood joists to wood, masonry and concrete
- Seat width: 5-1/2 in.
- Nominal joist size: 6×6
- Made from 14-gauge steel
- Stainless steel offers extra corrosion resistance for exterior and treated-wood applications
Install With: (8-12) 0.162 in. x 3-1/2 in. ring-shank nails in the header and (4-6) 0.162 in. x 3-1/2 in. ring-shank nails in the joist; stainless-steel fasteners required
