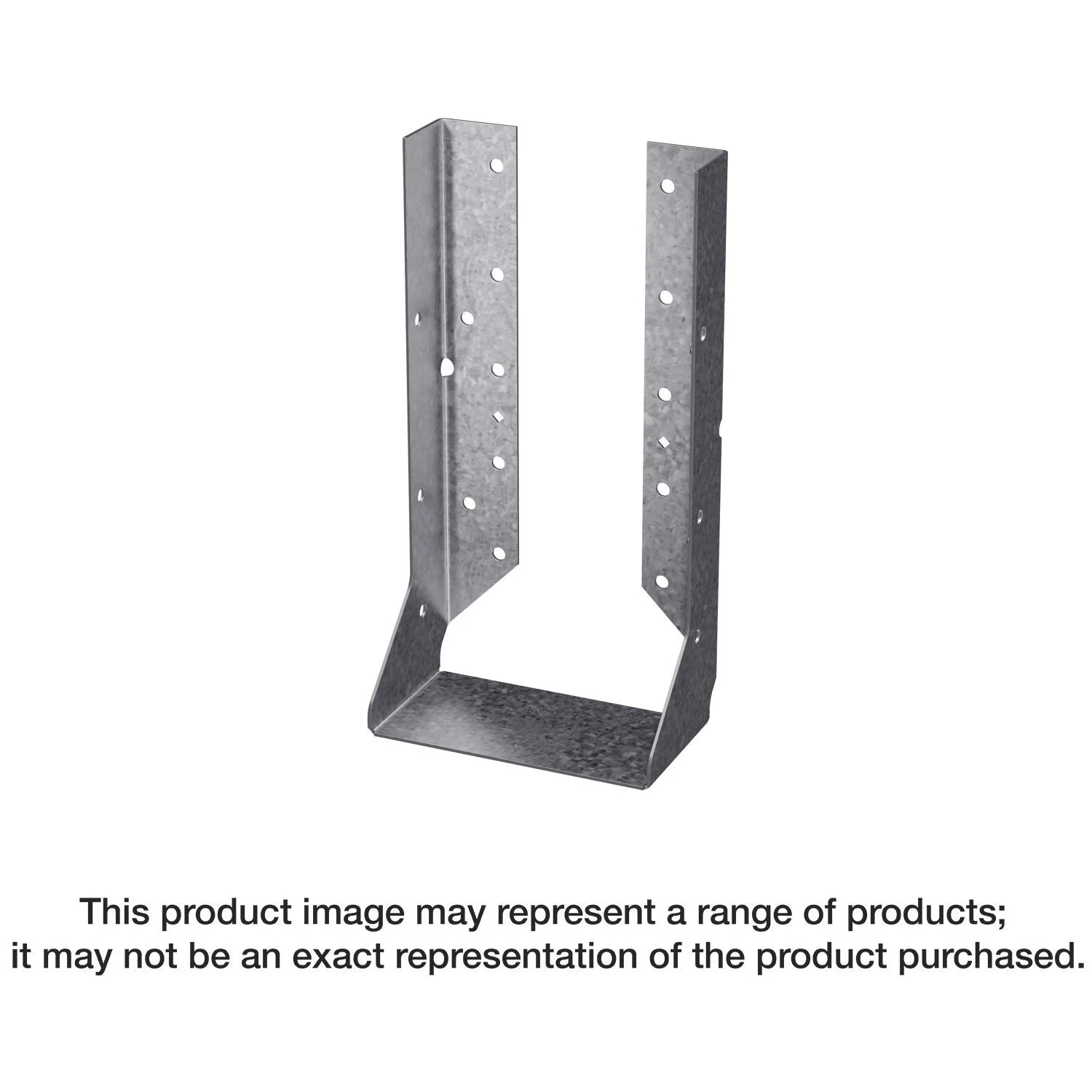

Simpson Strong-Tie HUCQ612SS-SDS HUCQ Stainless-Steel Heavy Face-Mount Concealed-Flange Joist Hanger for 6×12 w/ Screws

• Concealed flanges provide cleaner lines for exposed conditions
• HUCQ-series hangers are tested, load rated and code compliant
• Strong-Drive SDS Heavy-Duty Connector screws are included
• Install wood joists to wood, masonry and concrete
• Seat width: 5-1/2 in.
• Nominal joist size: 6×12
• Made from 14-gauge steel
• Stainless steel for high/severe corrosion resistance

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.

• Concealed flanges provide cleaner lines for exposed conditions
• HUCQ-series hangers are tested, load rated and code compliant
• Strong-Drive SDS Heavy-Duty Connector screws are included
• Install wood joists to wood, masonry and concrete
• Seat width: 5-1/2 in.
• Nominal joist size: 6×12
• Made from 14-gauge steel
• Stainless steel for high/severe corrosion resistance

Install With: Install with (14) 1/4 in. x 2-1/2 in. Type 316 stainless-steel SDS screws in the header and (6) 1/4 in. x 2-1/2 in. Type 316 stainless-steel SDS screws in the joist (screws included)
