- Horizontal embossments and corner gussets optimize performance
- Precision-manufactured shouldered screws provided with the IDCB connector are designed to prevent overdriving and to ensure that the clip functions properly
- Simpson Strong-Tie No-Equal stamps mark the center of the slots to help ensure correct shouldered screw and anchor placement
- Requires 4 in. minimum slab height
- 4 in. clip height; 5-1/2 in. stud-facing clip length; 3-1/2 in. slab-facing clip width
- Made from 97 mil (12 ga.) steel, 50 ksi
- Quantity: 25 connectors per package

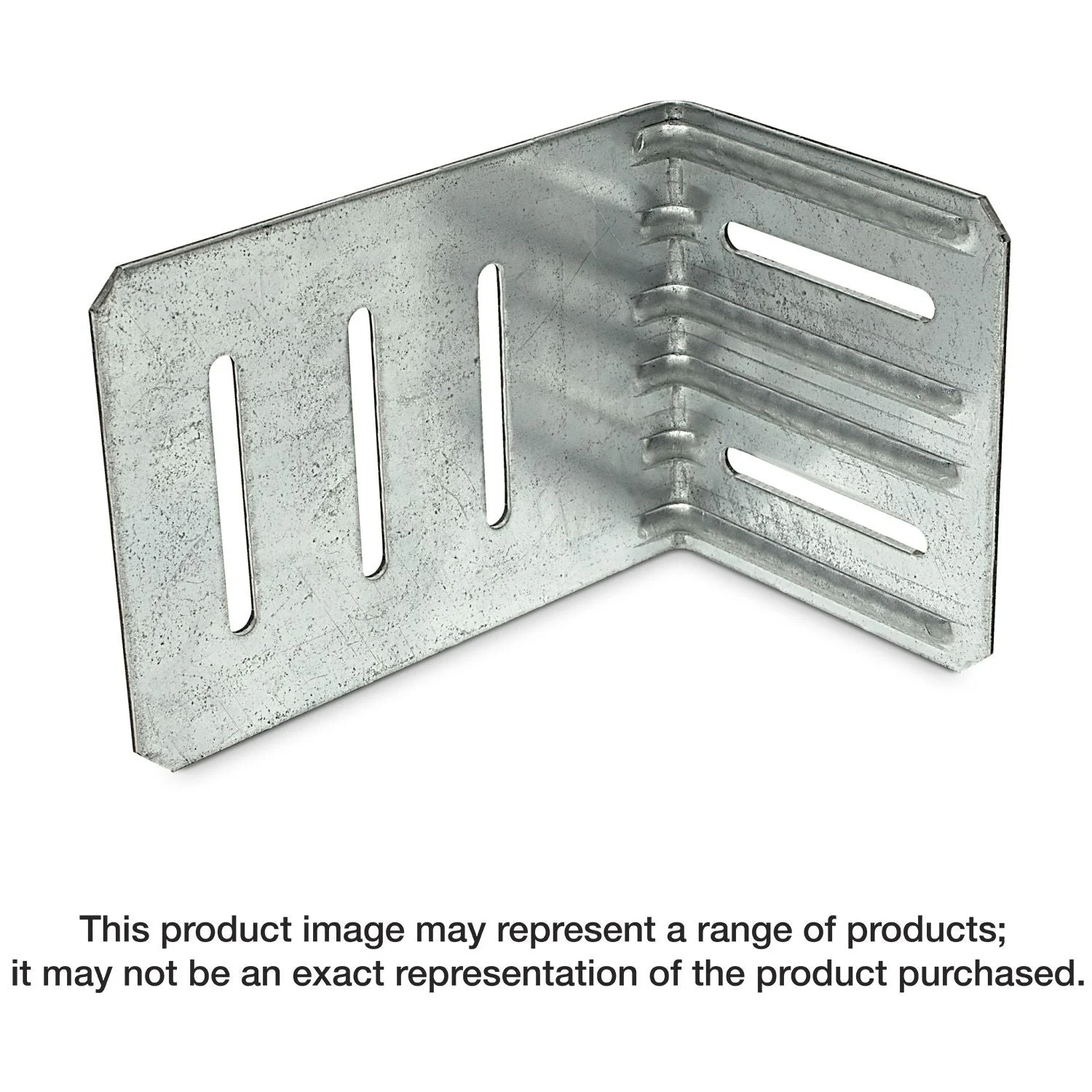

Simpson Strong-Tie cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The IDCB drift-clip connector is used to secure bypass stud framing to the edge of a slab. The connector will accommodate 1 in. of lateral drift in each direction and 1 in. of upward and downward vertical deflection. Tested for anchorage to a steel-edge angle using #12 x 1-1/4 in. Strong-Drive XL Large-Head Metal screws.
- Horizontal embossments and corner gussets optimize performance
- Precision-manufactured shouldered screws provided with the IDCB connector are designed to prevent overdriving and to ensure that the clip functions properly
- Simpson Strong-Tie No-Equal stamps mark the center of the slots to help ensure correct shouldered screw and anchor placement
- Requires 4 in. minimum slab height
- 4 in. clip height; 5-1/2 in. stud-facing clip length; 3-1/2 in. slab-facing clip width
- Made from 97 mil (12 ga.) steel, 50 ksi
- Quantity: 25 connectors per package
Install With: Install with (3) #14 shouldered screws to stud (provided) and (2) Strong-Drive XL Large-Head Metal screws (not provided) (Model: XLQ114B1224)
