- Replaces additional framing and toe-nailing
- Suitable for most installations on nominal 2×10 or 2×12 header/rim board
- May be installed flush with the top of the carrying member or lower on the face
- Interchangeable for left or right applications
- Made from 18-gauge steel
- Stainless steel for high/severe corrosion resistance

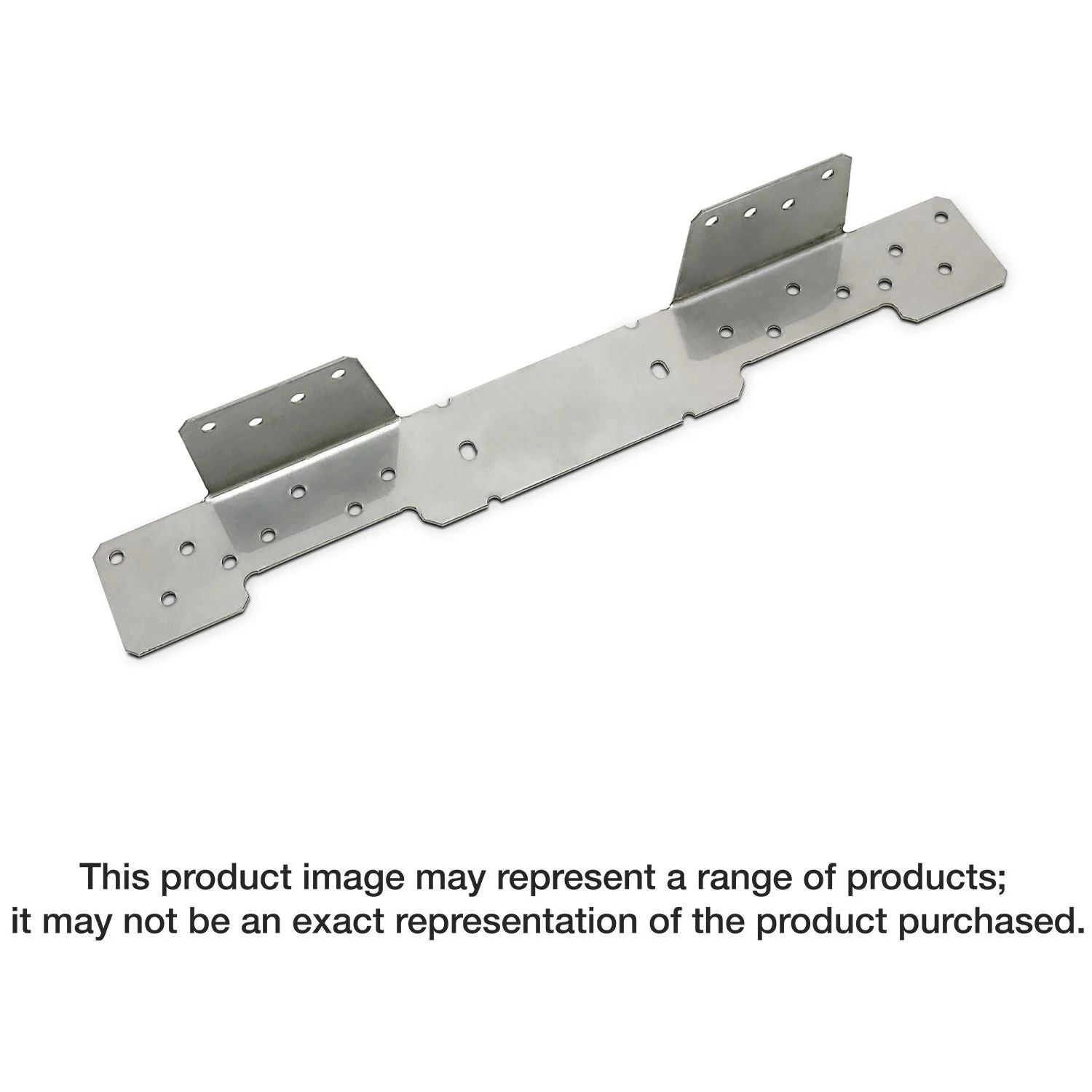

The Simpson Strong-Tie LSC adjustable stair-stringer connector offers a versatile, concealed connection between the stair stringer and the carrying header or rim joist while replacing costly framing. Field slopeable to all common stair stringer pitches, the LSC connector is suitable for either solid or notched stringers. The LSC replaces additional framing and toe-nailing and is interchangeable for left or right applications.
- Replaces additional framing and toe-nailing
- Suitable for most installations on nominal 2×10 or 2×12 header/rim board
- May be installed flush with the top of the carrying member or lower on the face
- Interchangeable for left or right applications
- Made from 18-gauge steel
- Stainless steel for high/severe corrosion resistance
Install With: Install with (17) 0.148 in. x 1-1/2 in. stainless-steel ring-shank nails or (17) #9 x 1-1/2 in. Strong-Drive SD stainless-steel screws
