- Staggered nailing pattern helps to minimize splitting and allows for nailing to the edges of double 2x members
- Strap nail slots are countersunk to provide a lower nail head profile when used with specified fasteners
- The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
- Strap length: 18-5/8 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance

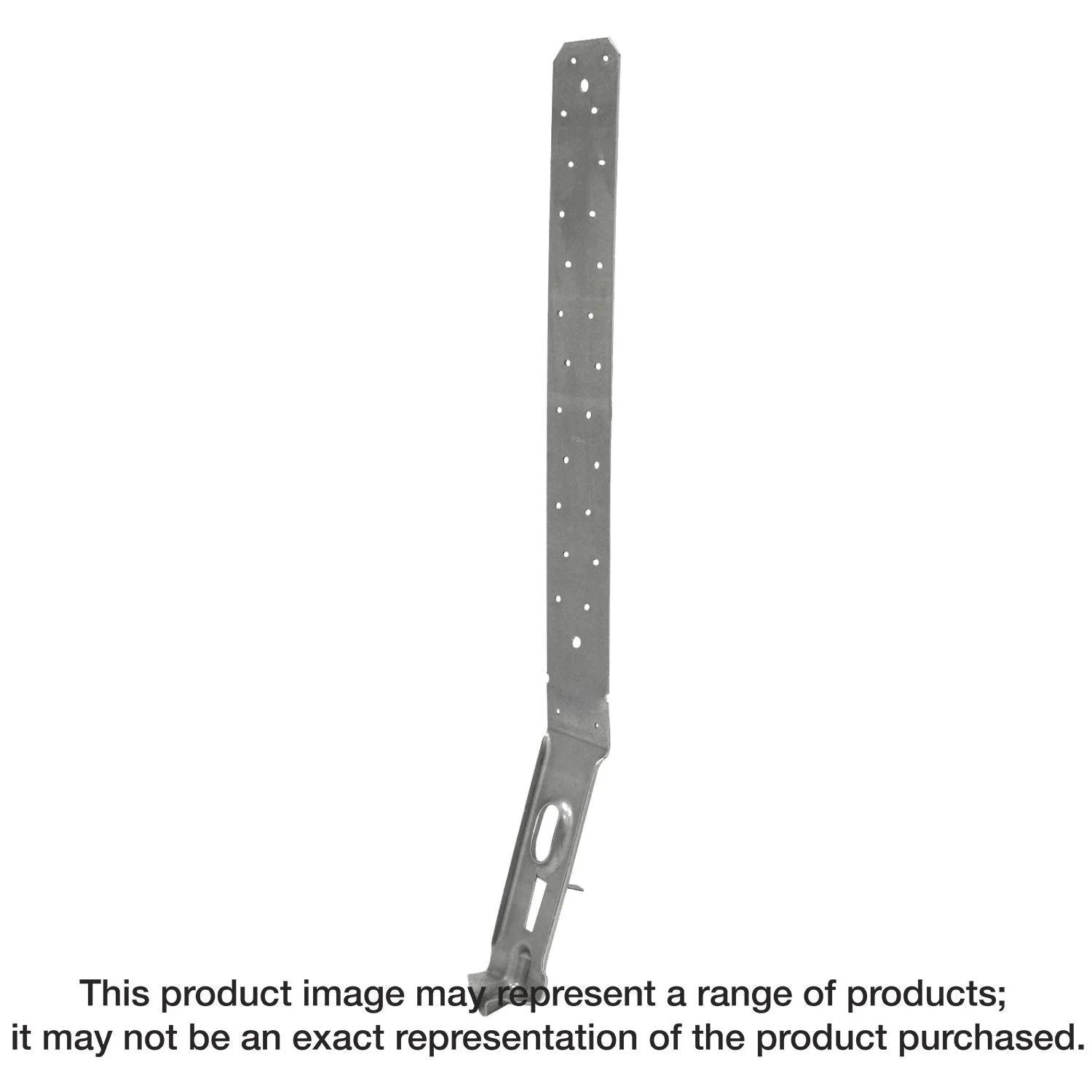

The LSTHD is an embedded strap-tie holdown with features that aid correct installation and improve performance in both wood and cold-formed steel construction. When installed on the forms with the StrapMate strap holder or other holding device, the unique design of this light cast-in-place strap-tie holdown delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.
- Staggered nailing pattern helps to minimize splitting and allows for nailing to the edges of double 2x members
- Strap nail slots are countersunk to provide a lower nail head profile when used with specified fasteners
- The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
- Strap length: 18-5/8 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 0.148 in. x 3-1/4 in. nails
