- This product is preferable to similar connectors because of easier installation, higher loads, and lower installed cost
- Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the supporting members
- Adjustments can be made in the field
- Web stiffeners required for I-joist applications
- Joist width: 5 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance

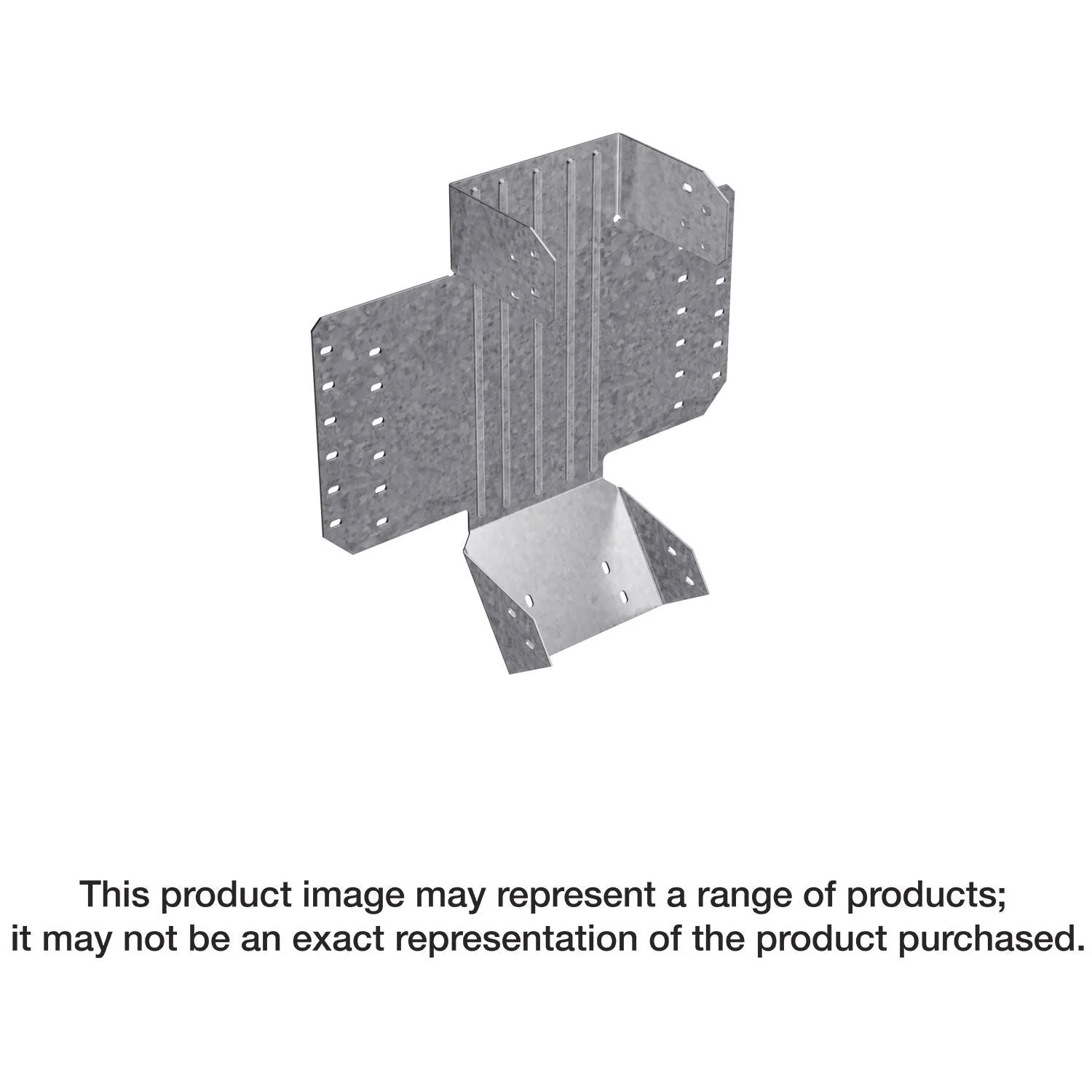

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LSU series of hangers may be sloped and skewed in the field, offering a versatile solution for attaching joists and rafters. These hangers may be sloped up or down and skewed left or right, up to 45°.
- This product is preferable to similar connectors because of easier installation, higher loads, and lower installed cost
- Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the supporting members
- Adjustments can be made in the field
- Web stiffeners required for I-joist applications
- Joist width: 5 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 16d common and 10d x 1-1/2 in. nails
