- LUC-series hangers are tested, load rated and code compliant
- The LUC series installs using several fastener selections with tested allowable loads
- Suitable for nominal 2×10 and 2×12 lumber
- Made from 18-gauge steel
- Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

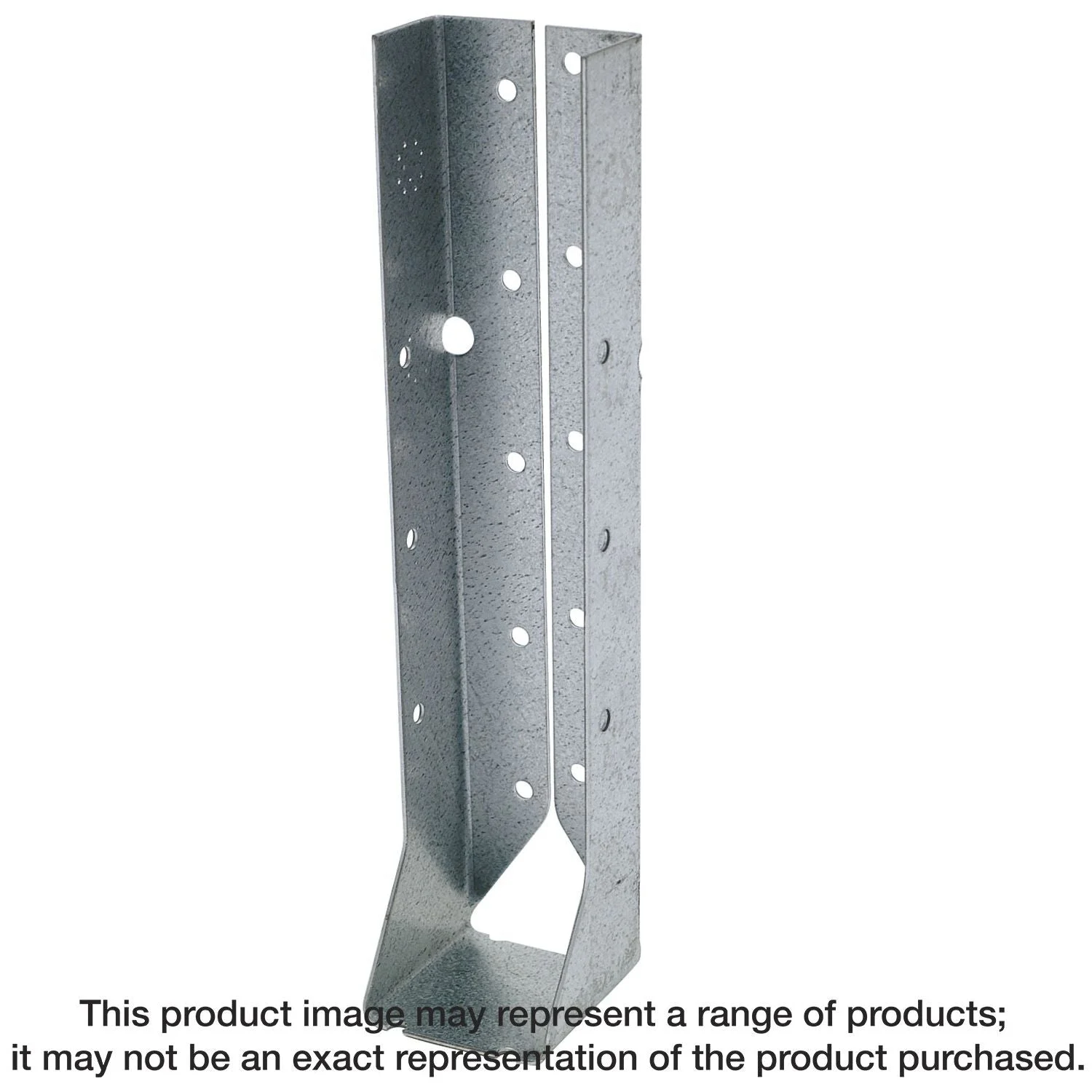

The Simpson Strong-Tie LUC hanger is designed to provide support underneath the joist, rafter or beam to provide a strong connection. This face-mount hanger has concealed header flanges that make for cleaner visible lines in exposed conditions. The LUC is value engineered for strength and economy and provides for easier and faster installation.
- LUC-series hangers are tested, load rated and code compliant
- The LUC series installs using several fastener selections with tested allowable loads
- Suitable for nominal 2×10 and 2×12 lumber
- Made from 18-gauge steel
- Stainless steel offers extra corrosion resistance for exterior and treated-wood applications
Install With: Installation requires stainless-steel fasteners; Strong-Drive SD Connector SS screws: (16) #9 x 1-1/2 in. (OR) Strong-Drive SCNR Ring-Shank Connector Nails: (10) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 1-1/2 in. nails in the joist
