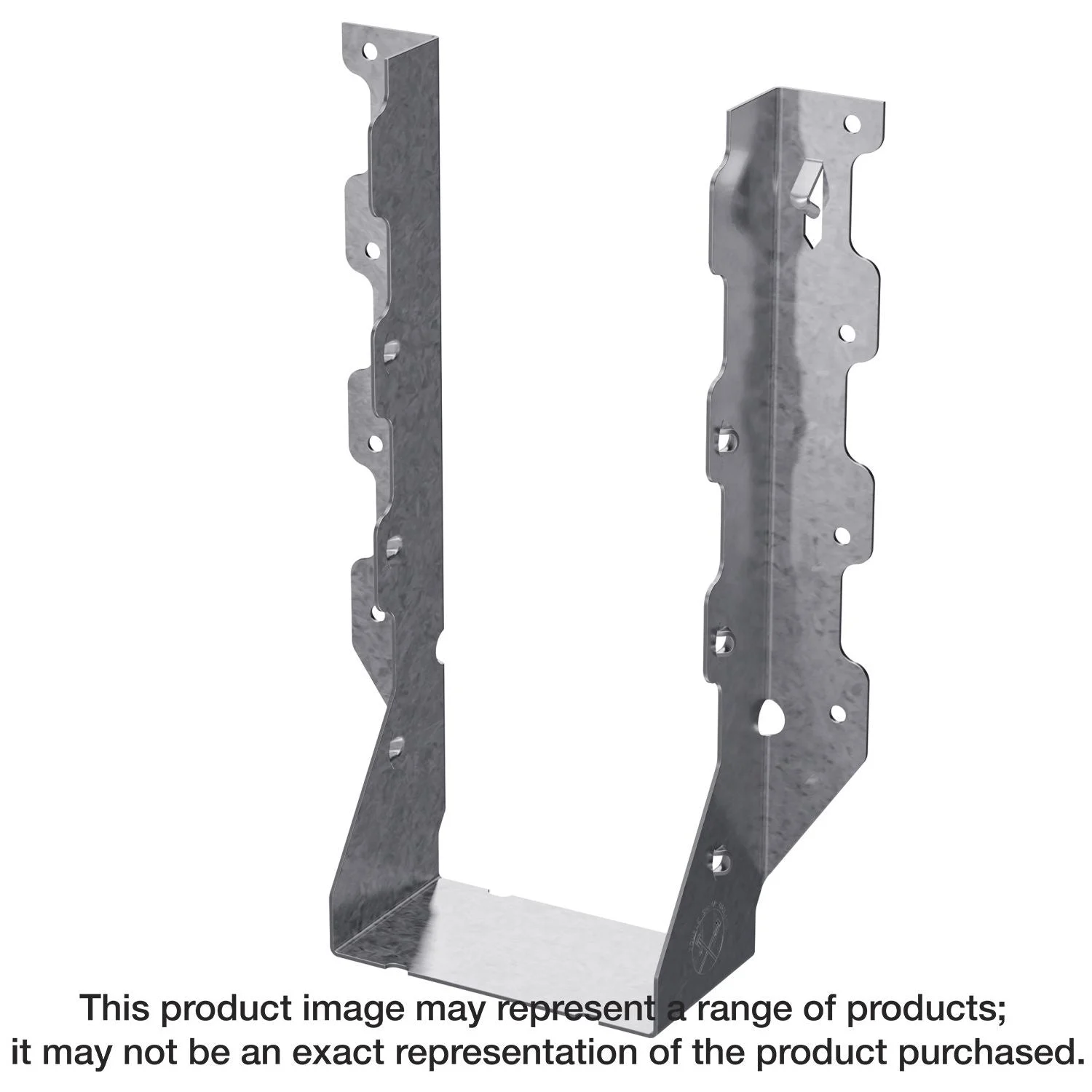

Simpson Strong-Tie LUS210-2SS LUS Stainless-Steel Face-Mount Joist Hanger for Double 2×10

• Works for a wide range of applications
• Double-shear nailing design provides greater strength with fewer nails
• Features speed prongs used to temporarily position and secure the connector for easier and faster installation
• Angled joist nailing easier in tight spaces
• LUS-series hangers are tested, load rated and code compliant
• Nominal joist size: Double 2×10, Double 2×12, Double 2×14
• Seat width: 3-1/8 in.
• Made from 18-gauge steel
• Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

• Works for a wide range of applications
• Double-shear nailing design provides greater strength with fewer nails
• Features speed prongs used to temporarily position and secure the connector for easier and faster installation
• Angled joist nailing easier in tight spaces
• LUS-series hangers are tested, load rated and code compliant
• Nominal joist size: Double 2×10, Double 2×12, Double 2×14
• Seat width: 3-1/8 in.
• Made from 18-gauge steel
• Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

Install With: Stainless-steel connectors require stainless-steel fasteners; install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (8) #9 x 1-1/2 in. screws in the header AND (6) #9 x 2-1/2 in. screws in the joist, OR (14) 0.162 in. x 3-1/2 in. Strong-Drive SCNR™ Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA16D)
