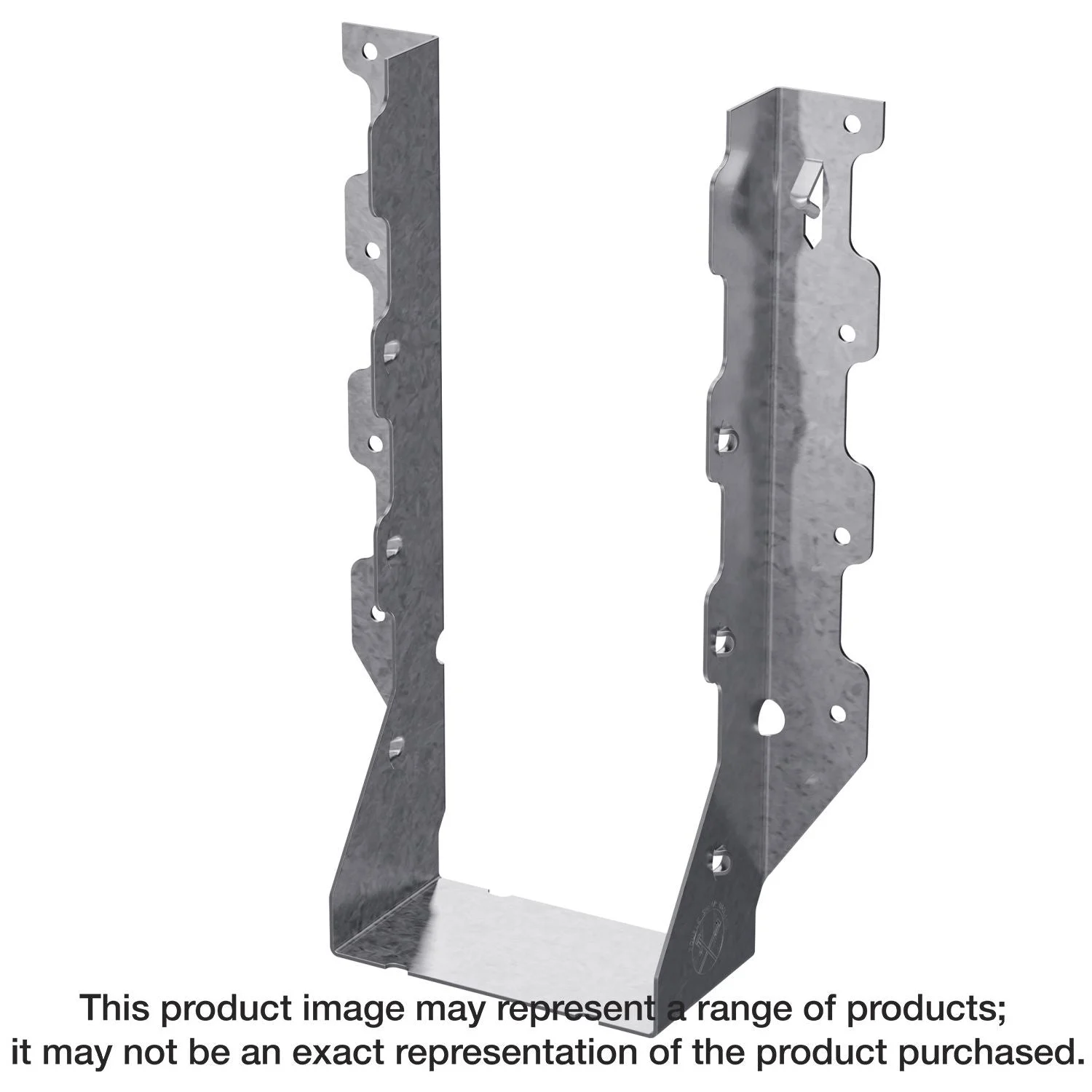

Simpson Strong-Tie LUS48Z LUS ZMAX Galvanized Face-Mount Joist Hanger for 4×8

• Patented double-shear nailing design provides greater strength with fewer nails
• Speed prongs for fast and easy installation
• Angled joist nailing easier in tight spaces
• Do not bend or remove tabs
• Hanger seat width: 3-9/16 in.
• Nominal joist size: 4×8, 4×10
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

• Patented double-shear nailing design provides greater strength with fewer nails
• Speed prongs for fast and easy installation
• Angled joist nailing easier in tight spaces
• Do not bend or remove tabs
• Hanger seat width: 3-9/16 in.
• Nominal joist size: 4×8, 4×10
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install With: Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (6) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (10) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG)
