- Straps are load rated with the correct thickness and number of fasteners, in contrast with field-fabricated straps
- Loads have been increased for wind and seismic forces
- Floor-to-floor clear span application
- For use on the edge of 2x members
- Length: 49 in.
- Width: 1-1/4 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance

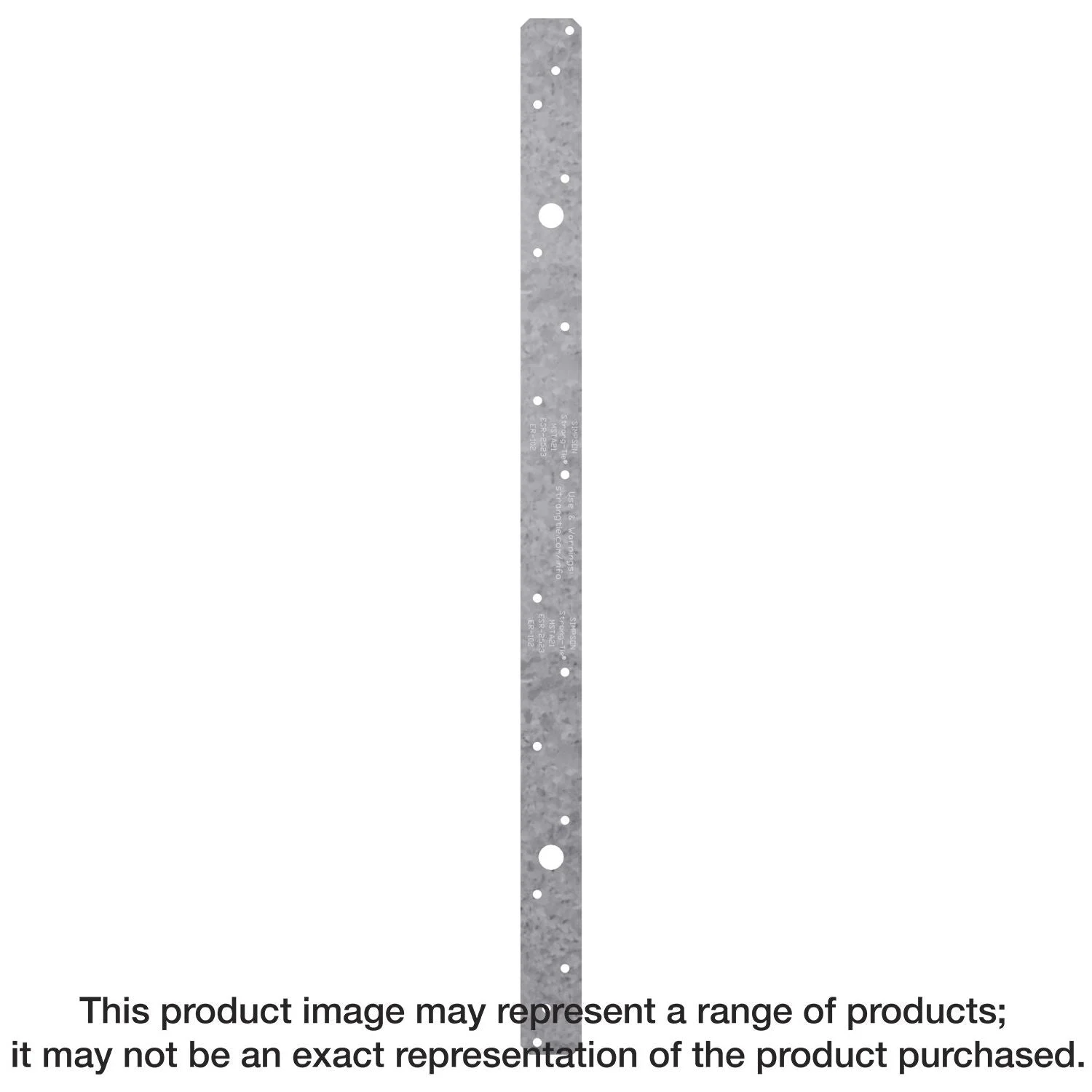

The MSTA is designed to resist tension loads in wood-to-wood uplift applications. This medium strap tie utilizes a staggered nail pattern to help minimize wood splitting. The MSTA is designed for use on the edge of 2x members.
- Straps are load rated with the correct thickness and number of fasteners, in contrast with field-fabricated straps
- Loads have been increased for wind and seismic forces
- Floor-to-floor clear span application
- For use on the edge of 2x members
- Length: 49 in.
- Width: 1-1/4 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws
