Key Features
Clean Concealed Look The concealed-flange layout keeps the sides of the connection cleaner and more finished when the hardware stays visible on pergolas, pavilions, and other outdoor structures. 12-Gauge Steel Build This heavy joist hanger is made from 12-gauge steel, giving it the strength needed for wood-to-wood beam connections where appearance and structural support both matter. Built for Exterior Use ZMAX galvanized steel with a black powder coat adds corrosion resistance for exterior and treated-wood applications, while matching the Outdoor Accents hardware system.
Overview

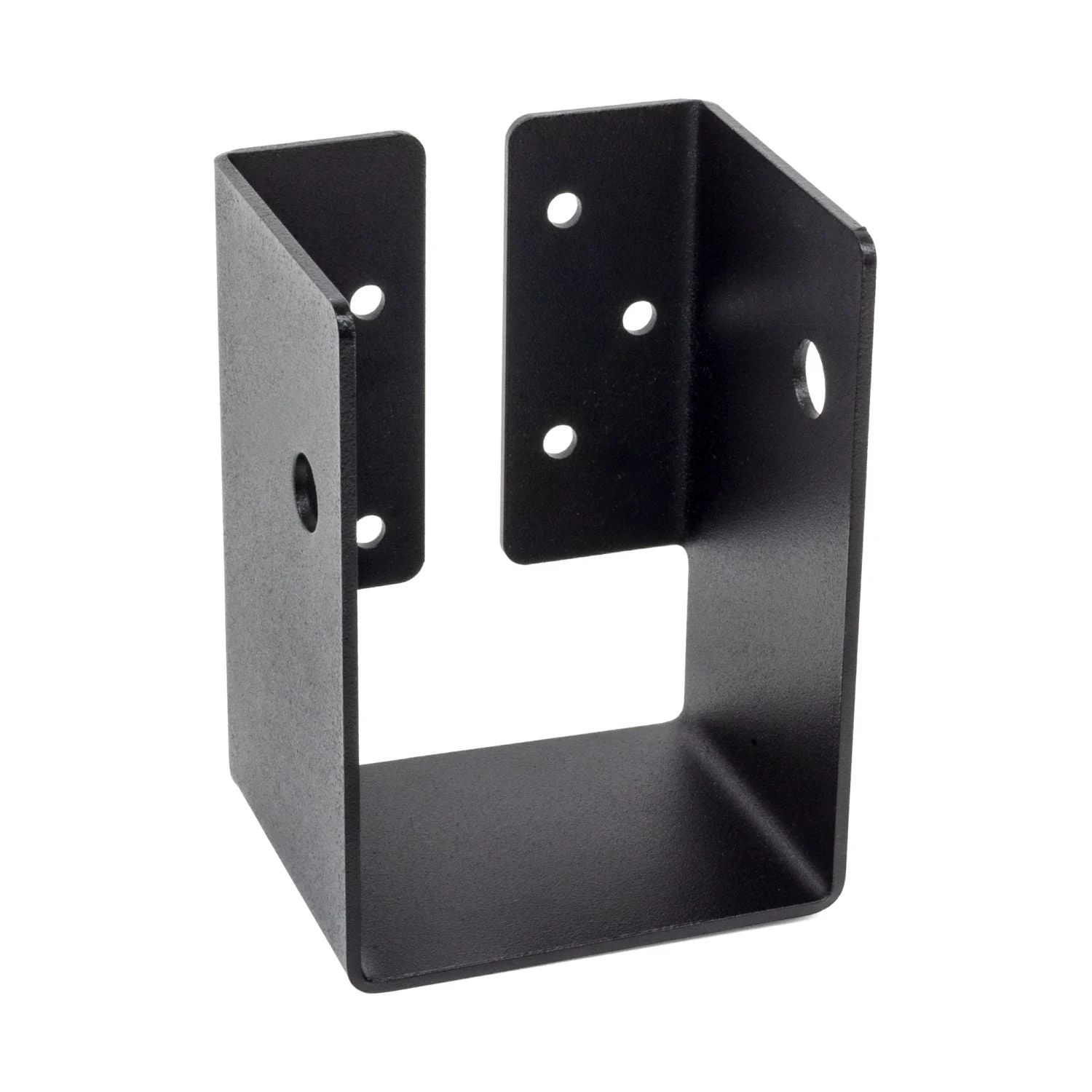

The Simpson Strong-Tie APHH46 heavy joist hanger is a concealed-flange wood connector made for fastening 4×6 or 4×8 members to a girder or header in outdoor wood construction. This is a heavy joist hanger designed for wood-to-wood beam connections where both structural support and finished appearance matter. Model Number APHH46 uses a 12-gauge steel body with a ZMAX galvanized finish and black powder coat, making it a strong fit for exposed outdoor projects where standard bright hardware would look out of place.
What sets this hanger apart is the way it handles a structural connection without making the whole assembly look industrial. The concealed-flange design keeps the side profile cleaner than a typical exposed-flange hanger, which matters on pergolas, pavilions, patio covers, and other outdoor builds where the connector stays in sight. Simpson Strong-Tie built the APHH series specifically for decorative structural work, so you are not just getting a bracket that happens to be black. You are getting a connector meant to work with the Outdoor Accents system and its finished look.
On the spec side, the APHH46 is sized for 4×6 or 4×8 members and uses a 3 9/16-inch width, 5 1/8-inch height, and 3-inch base dimension. That sizing matters because fit drives both load path and installation quality. If you are matching nominal 4x material in an outdoor frame, this hanger gives you the seat and sidewall dimensions intended for that member size rather than forcing a compromise with a generic connector. The 12-gauge steel construction also tells you this is not a light trim bracket. It is built for real framing connections.
For exterior work, finish matters as much as fit. The ZMAX galvanized base layer with black powder coat gives the Simpson Strong-Tie APHH46 heavy joist hanger added corrosion resistance for exterior and treated-wood applications while keeping the visible hardware consistent with the rest of the Outdoor Accents line. That is a practical advantage if you are building with pressure-treated lumber and do not want to mix decorative hardware with standard silver connectors that throw off the look of the project.
Installation is straightforward, but this connector is designed around specific fasteners and should be installed with all specified fasteners. Simpson Strong-Tie calls for Outdoor Accents structural wood screws with hex-head washers at the joist connection and Strong-Drive SDS heavy-duty connector screws at the header connection. Fasteners are sold separately, which is worth knowing up front so the job does not stall when the hardware shows up without the screws and washers needed to complete the assembly.
Because this hanger is part of a broader platform, compatibility is one of its real strengths. It complements the Outdoor Accents Mission Collection and Avant Collection, so if you are building a coordinated outdoor structure, this connector works with matching fasteners and visible hardware details instead of looking like an afterthought. For contractors, that means a cleaner finished package. For serious DIY builders, it means you can get structural hardware that does the job without sacrificing the look of the build.
The right buyer for the Simpson Strong-Tie APHH46 heavy joist hanger is someone building an exposed outdoor wood structure and who cares about both strength and appearance. It makes sense for deck and pergola builders, general contractors, remodelers, and homeowners building custom backyard structures. If the connection will be hidden, a standard hanger may be enough. If the connection will stay visible and you want it to look intentional, this is the better answer.
Designed to Stay Visible
This is the kind of connector you use when the framing detail is part of the finished look. The concealed-flange layout keeps the connection neat while still giving you a heavy-duty beam-to-girder hanger for exterior wood framing.
- Concealed-flange design provides a cleaner-looking joist connection
- Built to connect 4×6 or 4×8 wood members to a supporting header or girder
Made for Outdoor Wood Construction
The finish is not just for looks. ZMAX galvanizing under the black powder coat helps this hanger hold up better in exterior and treated-wood applications, which is exactly where decorative structural hardware usually gets used.
- 12-gauge steel body for heavy wood-to-wood connections
- ZMAX galvanized with black powder coat for added corrosion resistance
Fit and Dimensions That Matter
With structural connectors, fit is the whole game. The APHH46 is sized specifically for nominal 4x members, so you are choosing a hanger intended for the job rather than trying to make a close size work.
- Width: 3 9/16 in.
- Height: 5 1/8 in. and base dimension: 3 in.
What’s in the Box
- (1) Simpson Strong-Tie APHH46 heavy joist hanger
Fasteners are sold separately.
Key Specifications
| Joist Size | 4×6 or 4×8 |
|---|---|
| Material | 12-gauge steel |
| Width (in.) | 3 9/16 in. |
| Height (in.) | 5 1/8 in. |
| Base Dimension B (in.) | 3 in. |
| Finish | ZMAX galvanized with black powder coat |
| Application | Wood-to-wood fastening |
| Package Quantity | 1 |
Compatibility
Structural Wood Members Fits nominal 4×6 or 4×8 wood members. Required Fasteners Installs with Outdoor Accents structural wood screw SDWS22312DBB and STN22 hex-head washer at the joist, plus SDS25300 Strong-Drive SDS heavy-duty connector screws at the header. Outdoor Accents System Complements the Outdoor Accents Mission Collection and Avant Collection for a coordinated exposed-hardware look.
Built For
Outdoor Structures Pergolas Pavilions Deck Framing Wood Construction General Contracting Remodeling DIY / Hobbyist
Pro Tip
Order the specified screws and STN22 washers with the hanger. This connector is designed around that hardware, and having the right fasteners on site saves you from a clean-looking install turning into a parts chase.
Tool Nut’s Take
Tool Nut’s Take
Simpson Strong-Tie APHH46 Heavy Joist Hanger for outdoor framing that actually looks finished
The Simpson Strong-Tie APHH46 heavy joist hanger makes sense when you need a real structural connector but do not want the connection to look like an afterthought.
- Who it’s for: Builders and homeowners putting up pergolas, patio covers, and other exposed wood structures with nominal 4x members.
- Why it stands out: The concealed-flange design and black Outdoor Accents finish give you a cleaner result than a standard hanger, while the 12-gauge steel body keeps it in the heavy-duty category.
- Worth knowing: This is not a grab-any-screws connector. Fasteners are sold separately, and you want the specified Simpson hardware if you want the install and load path done right.
Common Questions
- What size members does the APHH46 fit? It is sized for 4×6 or 4×8 wood members.
- Is this hanger intended for exterior use? Yes. It uses a ZMAX galvanized finish with a black powder coat for exterior and treated-wood applications.
- Are fasteners included? No. Simpson Strong-Tie specifies separate fasteners for the joist and header connections.
- What type of connection is it designed for? This is a wood-to-wood heavy concealed-flange hanger for connecting beams to girders or headers.
