- Minimum embedment line indicators for both concrete and concrete block installations
- Nailing pattern optimized for narrow face of nominal 2x wood member
- Low design profile minimizes visibility
- Length: 51 in.
- For additional length, an MST strap can be attached using 1/2″ bolts through existing holes
- Made from 12-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

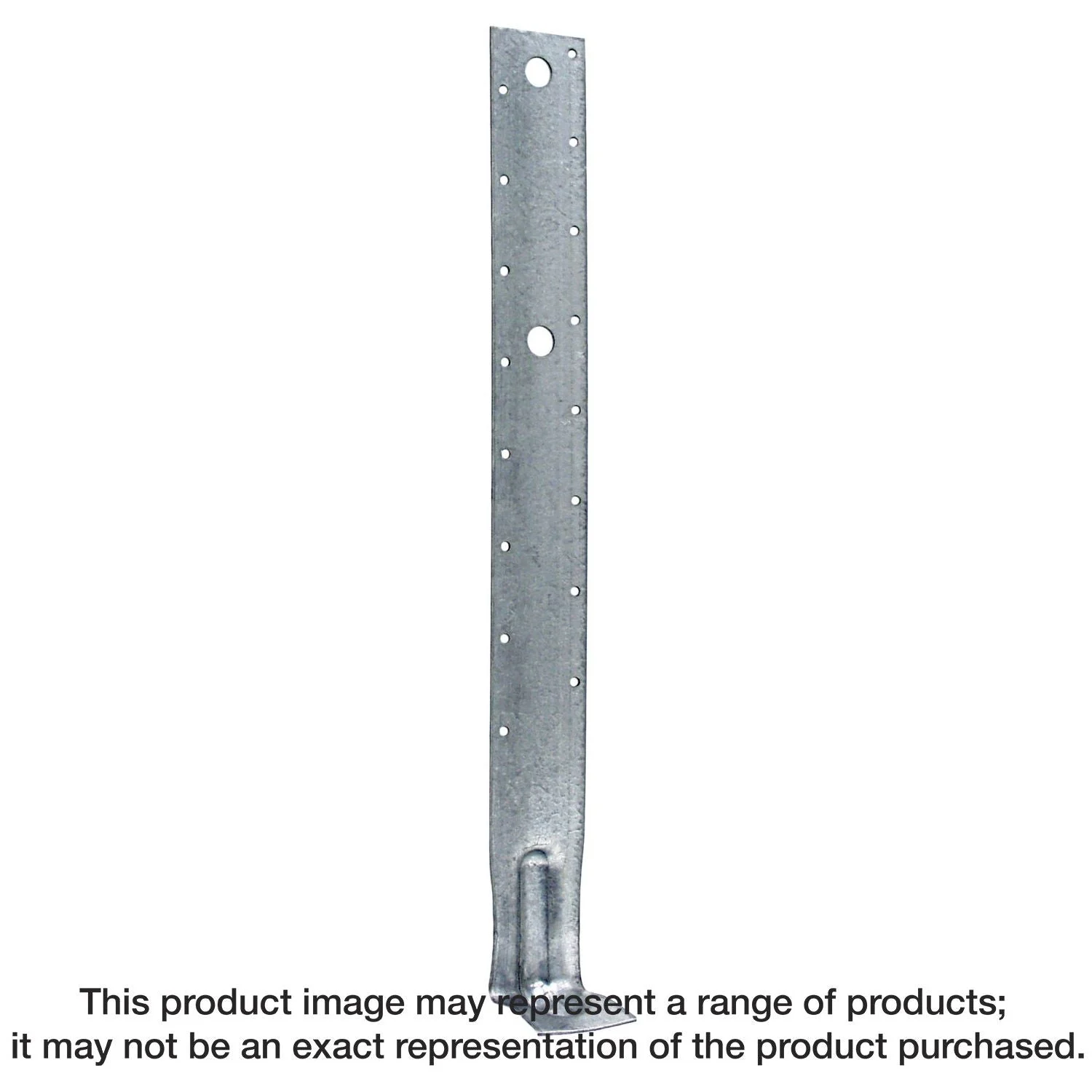

The PA is a solution for wood-to-concrete and concrete-block connections. To support code requirements, the PA is designed to connect roof purlins to a masonry exterior wall. This purlin anchor features a dual-embedment line that allows for installation in concrete or concrete block (GFCMU).
- Minimum embedment line indicators for both concrete and concrete block installations
- Nailing pattern optimized for narrow face of nominal 2x wood member
- Low design profile minimizes visibility
- Length: 51 in.
- For additional length, an MST strap can be attached using 1/2″ bolts through existing holes
- Made from 12-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install With: Install with 0.148 in. x 3 in. nails
