- Provides a 1-in. standoff between post and concrete that meets code requirements
- Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
- Embossment in the vertical straps provides increased strength
- Optional fastening with either nails or bolts
- Nominal post size: 4×4
- Base 12-ga. steel; Strap 14-ga. steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

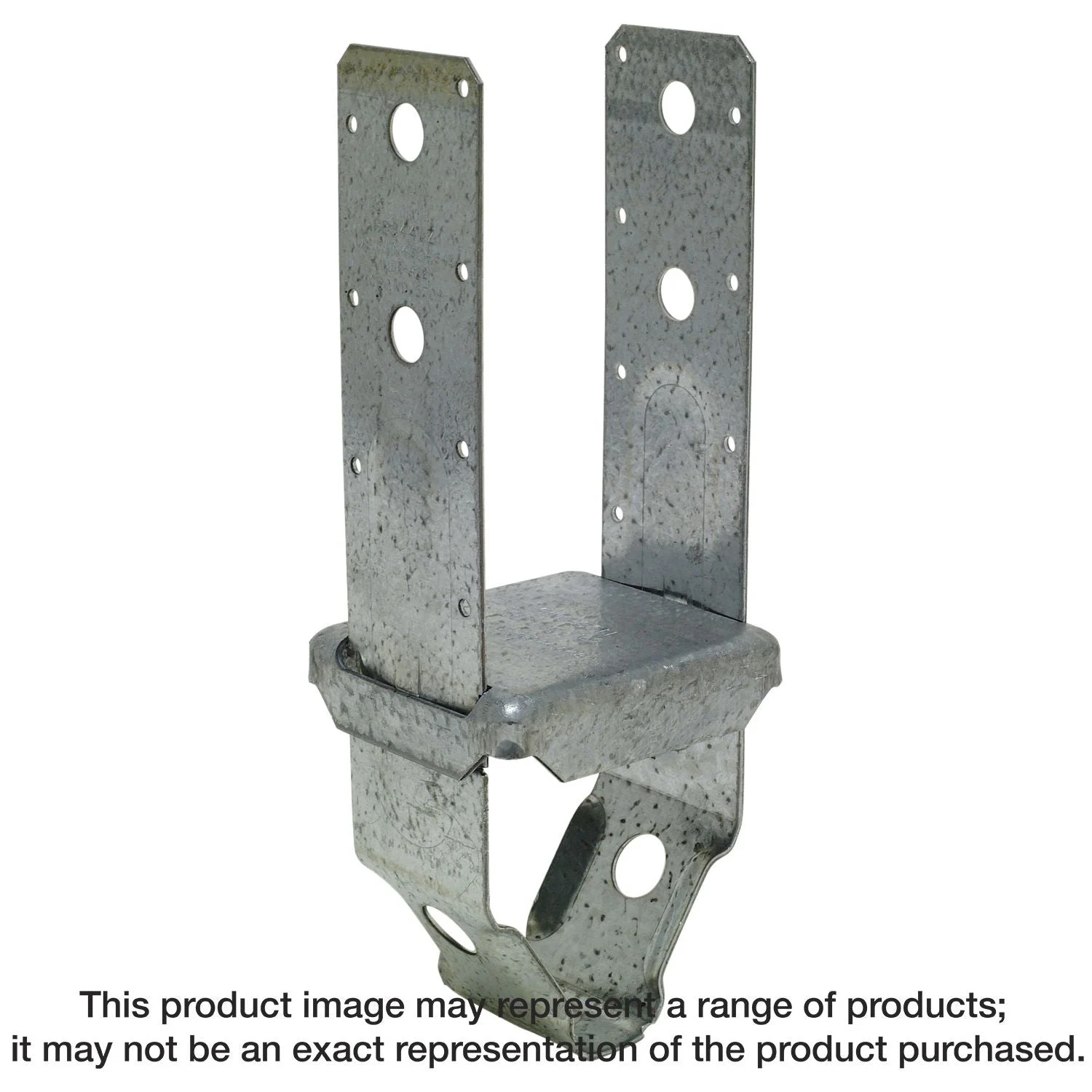

Simpson Strong-Tie post bases connect the bottom of wood posts or columns to a concrete foundation. The PBS is designed to provide a secure connection between a post (or column) and concrete in projects including decks, patio covers and other top-supported structures. These post bases are elevated 1 in. to avoid contact of the wood post with standing water to help prevent rot at the post end.
- Provides a 1-in. standoff between post and concrete that meets code requirements
- Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
- Embossment in the vertical straps provides increased strength
- Optional fastening with either nails or bolts
- Nominal post size: 4×4
- Base 12-ga. steel; Strap 14-ga. steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install With: (14) 0.162 in. x 3-1/2 in. nails or (2) 1/2 in. diameter bolts
