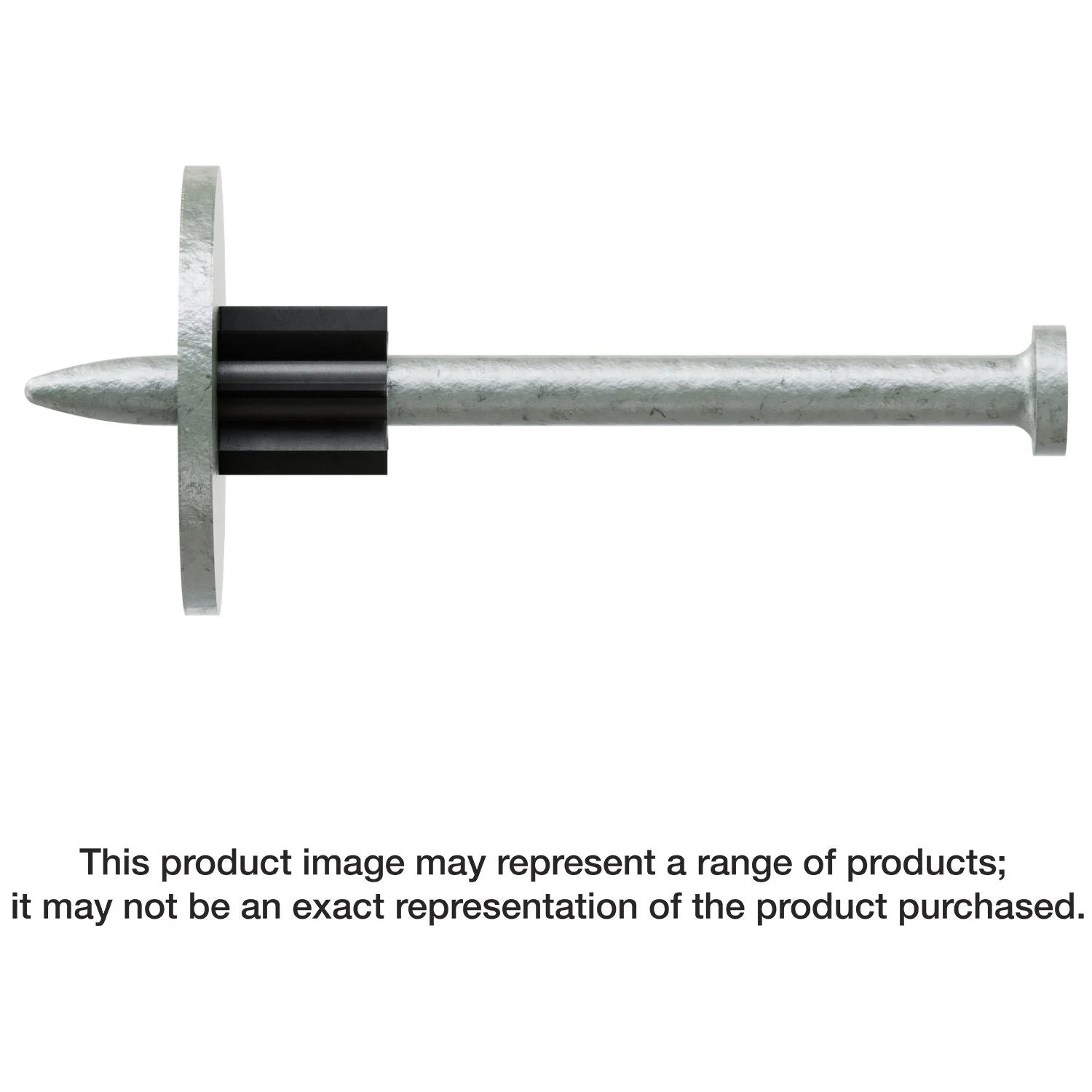

Simpson Strong-Tie PDPAWL-225 PDPAWL .157-in. x 2-1/4-in. Powder-Actuated Pin with 1-in. Washer, 100-Pack

• The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
• 0.300-in. head diameter / 0.157-in. shank diameter
• 1-in. zinc-plated washer
• Mechanically galvanized carbon-steel pin
• Length: 2-1/4 in.
• Quantity: 100

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort. The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1-in. washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie powder-actuated tool systems as well as other common tools.

• The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
• 0.300-in. head diameter / 0.157-in. shank diameter
• 1-in. zinc-plated washer
• Mechanically galvanized carbon-steel pin
• Length: 2-1/4 in.
• Quantity: 100
