- Larger #5 pilot point with longer flute
- Buttress threads and dog-ear point provide faster drilling through sheathing and metal
- 6-lobe recess for a more secure drive
- Compatible with Quik Drive PRO300SG2, PRO250G2 and PRO200SG2 auto-feed screw driving systems
- PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISA S240 and AISI S400
- (2) T25 6-lobe driver bits included (replacement bit model QRTX25-1.5)
- Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
- Length: 1-15/16 in.
- Quik Guard coating
- Quantity: 2,000

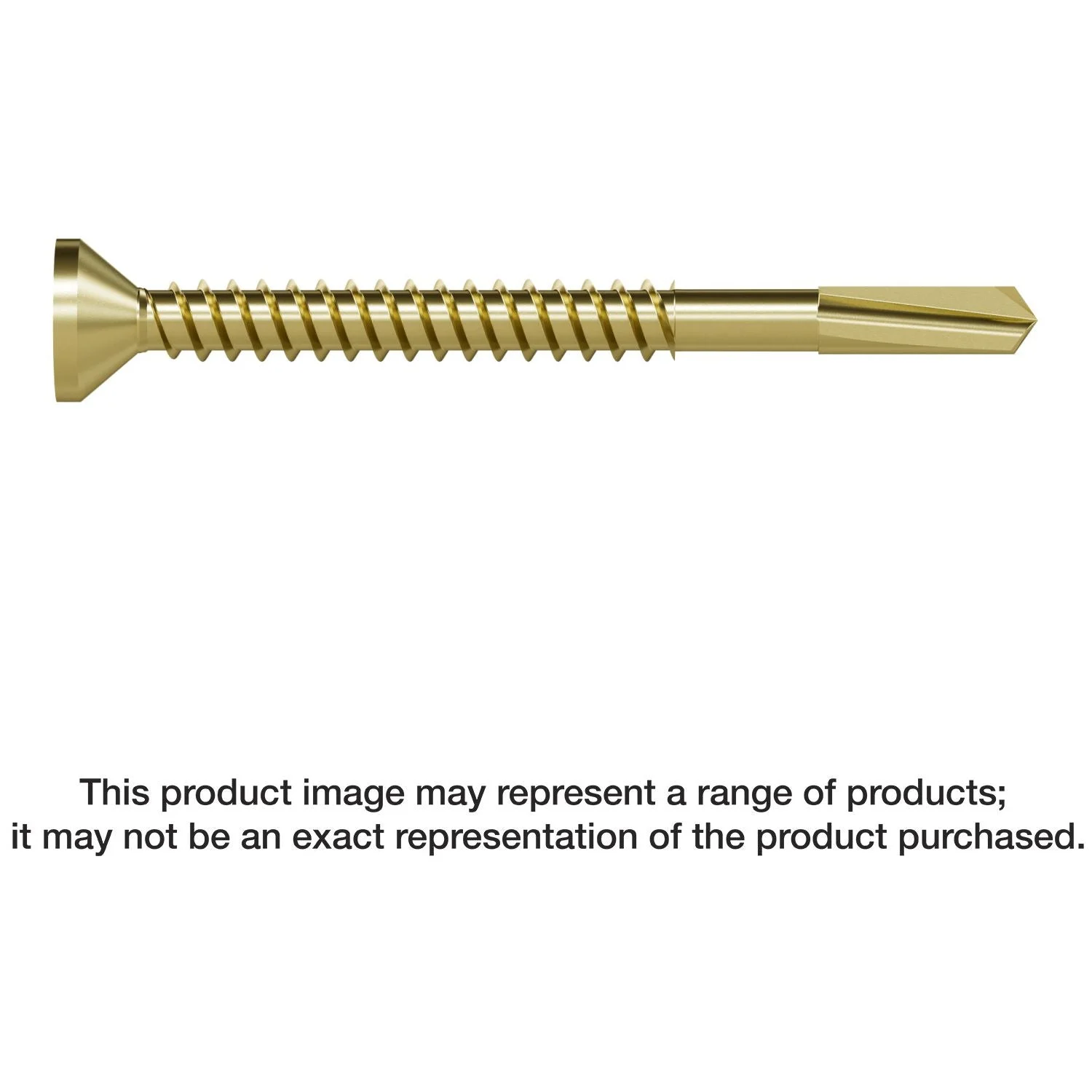

Simpson Strong-Tie metal screws are designed to provide strength and superior performance in steel and other metal applications. With a variety of features, these fasteners meet the requirements for residential, agricultural and commercial projects. The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point and buttressed thread design. The Strong-Drive PPHD Sheathing-to-CFS screw comes collated for use in Quik Drive auto-feed screw driving systems and in bulk for hand drive applications.
- Larger #5 pilot point with longer flute
- Buttress threads and dog-ear point provide faster drilling through sheathing and metal
- 6-lobe recess for a more secure drive
- Compatible with Quik Drive PRO300SG2, PRO250G2 and PRO200SG2 auto-feed screw driving systems
- PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISA S240 and AISI S400
- (2) T25 6-lobe driver bits included (replacement bit model QRTX25-1.5)
- Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
- Length: 1-15/16 in.
- Quik Guard coating
- Quantity: 2,000
Install With: Installs with the Simpson Strong-Tie Quik Drive PRO200SG2, PRO250G2 or PRO300SG2 auto-feed screw driving systems
