- Designed for use with cold-formed steel framing
- Anchors the shearwall to the foundation to resist overturning
- Height: 16-5/8 in.
- Made from 118 mil (10 ga.) steel
- Galvanized (G90) for corrosion resistance

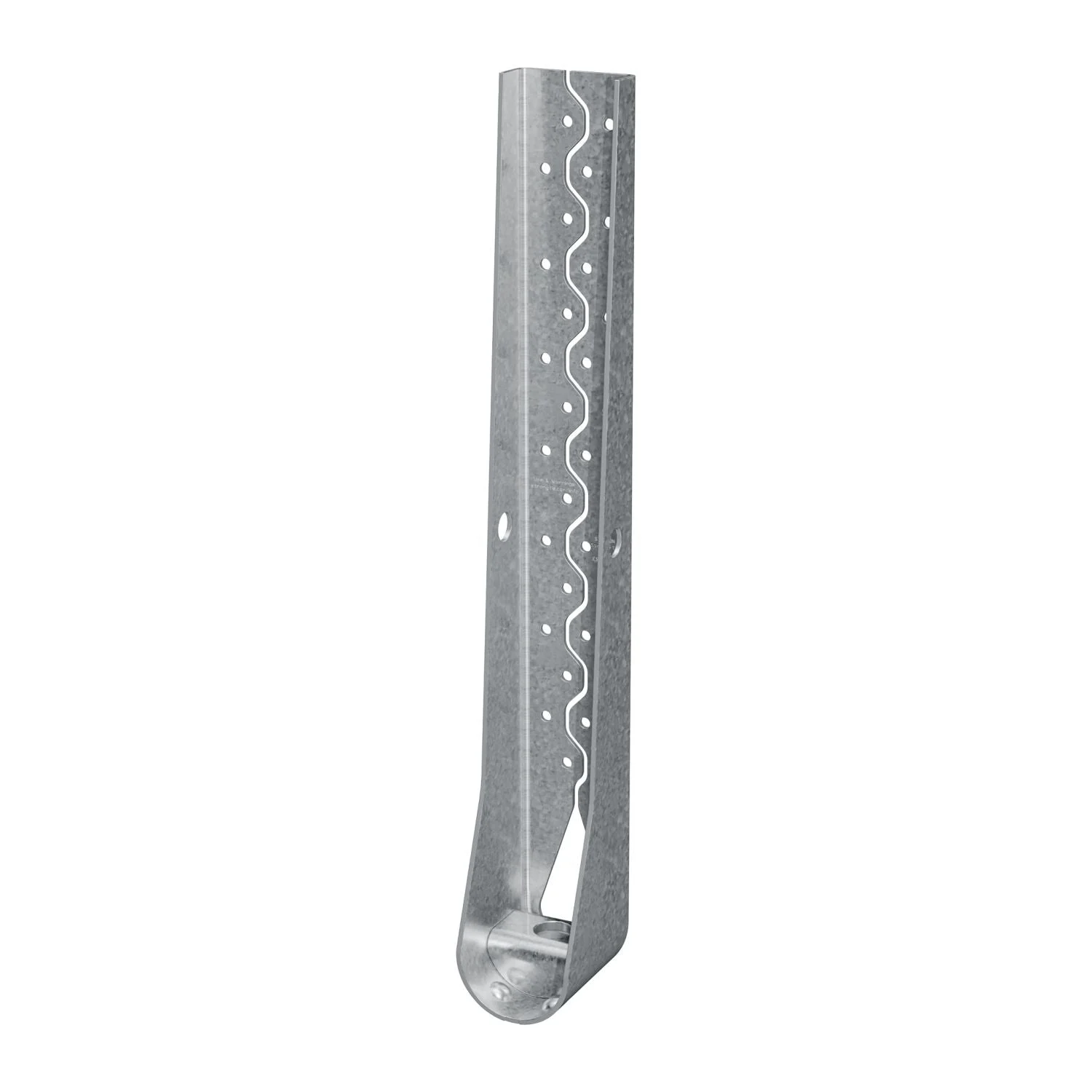

Simpson Strong-Tie cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The S/HDU series of holdowns combines performance with ease of installation. The pre-deflected geometry virtually eliminates material stretch, resulting in low deflection under load. Installation using self-drilling tapping screws into the studs reduces installation time and saves labor cost.
- Designed for use with cold-formed steel framing
- Anchors the shearwall to the foundation to resist overturning
- Height: 16-5/8 in.
- Made from 118 mil (10 ga.) steel
- Galvanized (G90) for corrosion resistance
Install With: Install with (27) #14 self-drilling screws to the stud and (1) 7/8 in. diameter anchor bolt to structure
