- Ideal for retrofit or new construction
- Easy installation for attachment of 1/2-in. diameter post-installed or cast-in-place anchors to concrete and #10 screws to CFS studs
- Flanges rolled into bend and extruded anchor bolt hole provide increased strength and limit deflection
- Length: 14-15/16 in.
- Width: 2-9/16 in.
- Made from 129-mil (10-gauge) steel
- Galvanized (G90) for corrosion resistance

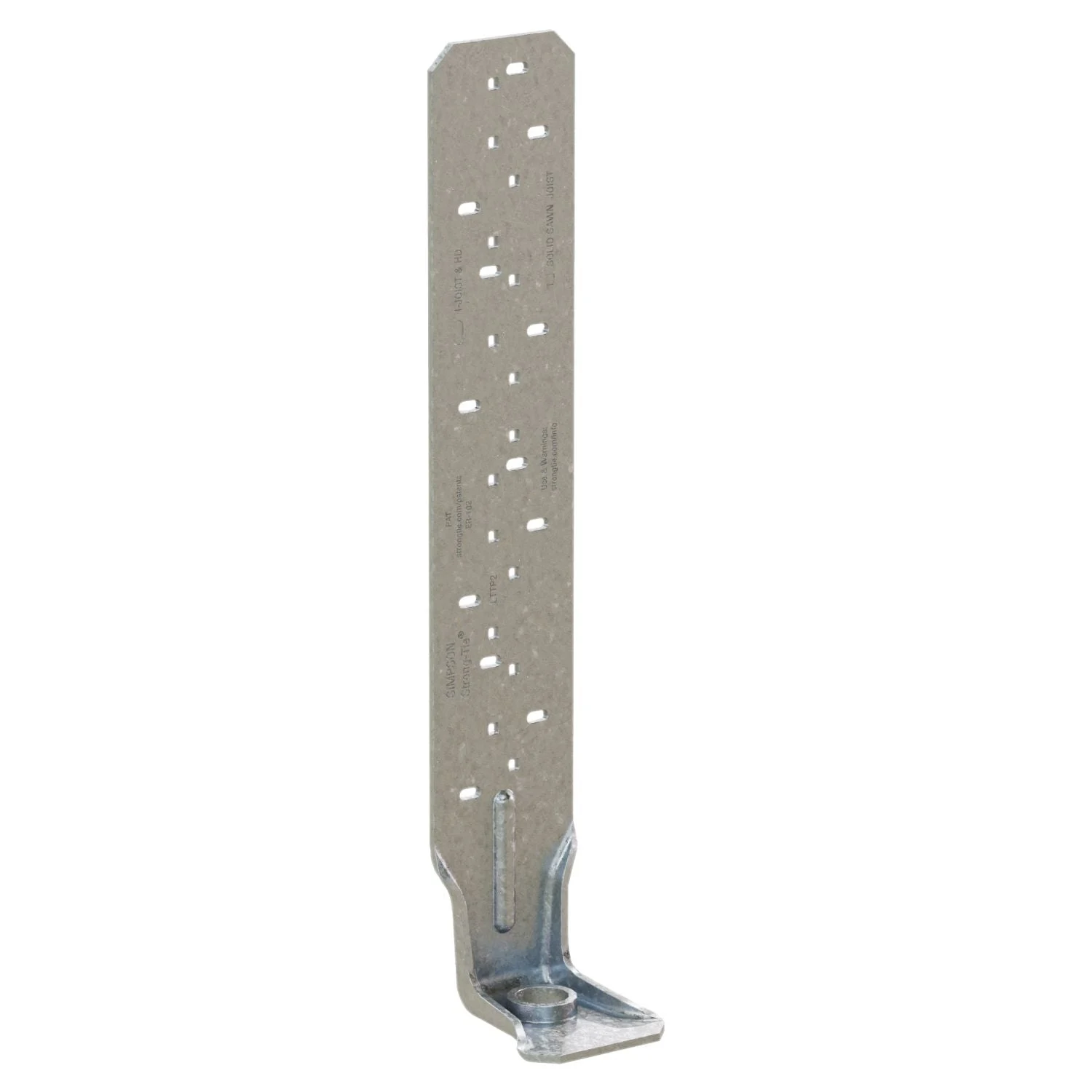

The Simpson Strong-Tie S/LTTP2 tension tie is ideal for retrofit or new construction. It is designed for easy installation for attachment with a 1/2-in. diameter post-installed or cast-in-place anchor to concrete and #10 screws to a CFS stud. The S/LTTP2 has flanges rolled into the bend and an extruded anchor bolt hole that provide increased strength and limit deflection.
- Ideal for retrofit or new construction
- Easy installation for attachment of 1/2-in. diameter post-installed or cast-in-place anchors to concrete and #10 screws to CFS studs
- Flanges rolled into bend and extruded anchor bolt hole provide increased strength and limit deflection
- Length: 14-15/16 in.
- Width: 2-9/16 in.
- Made from 129-mil (10-gauge) steel
- Galvanized (G90) for corrosion resistance
Install With: Installs with (12) #10 screws into CFS stud and (1) 1/2-in. diameter anchor bolt
