- Single anchor solution for all foundation types
- Stamped model and alignment information on the head makes it easy to identify and align for installation
- Sweep design allows placement near the edge of concrete while increasing tension capacity
- One-piece design eliminates potential loss of components
- Diameter: 1-1/4 in.
- Bolt length: 32 in.
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

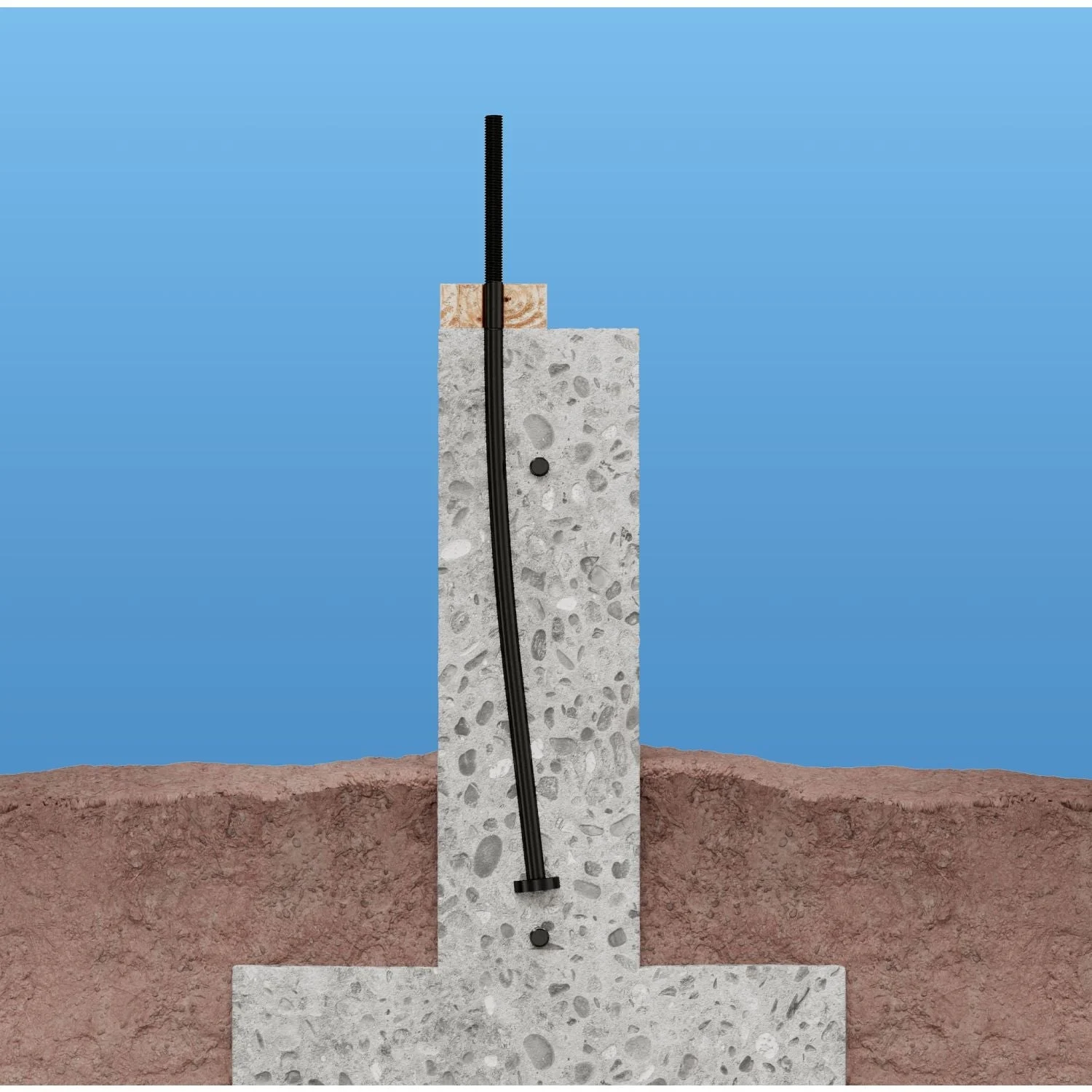

The Simpson Strong-Tie SABR™ anchor bolt is a cast-in-place anchor that comes in a wide range of diameters. With a 6 in. threaded section, this anchor bolt accommodates a variety of holdown seat heights, including all Simpson Strong-Tie holdowns, when installed on a 2x or 3x sill plate. The one-piece sweep design maximizes its position in the concrete, providing increased tension capacity.
- Single anchor solution for all foundation types
- Stamped model and alignment information on the head makes it easy to identify and align for installation
- Sweep design allows placement near the edge of concrete while increasing tension capacity
- One-piece design eliminates potential loss of components
- Diameter: 1-1/4 in.
- Bolt length: 32 in.
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Install With: Top nuts and washers for holdown attachment are not supplied with the SABR; on HDG SABR anchors, chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563
