- Identification on the bolt head showing embedment angle and model
- Sweep geometry to optimize position in form
- Rolled thread for higher tensile capacity
- Hex nuts and plate washer fixed in position
- Diameter: 1 in.
- Length: 30 in.
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

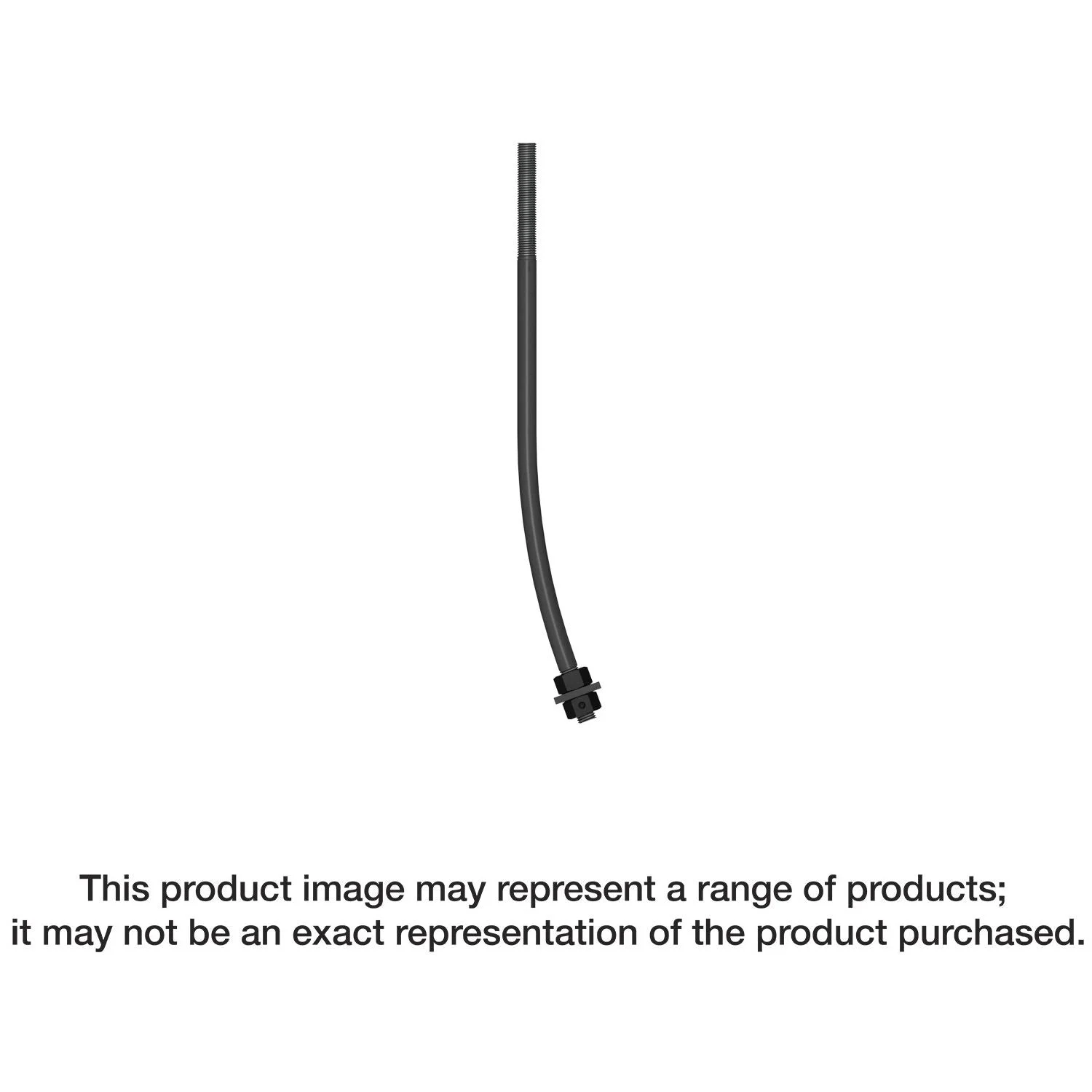

The SB anchor bolt is a high-capacity solution for holdowns that require larger diameter anchors. The smooth transition angle positions the head of the anchor in the optimum location in the concrete stem wall to maximize performance. The SB1x30 covers holdowns utilizing a 1″ diameter anchor that exceed the capacity of our SSTB bolts.
- Identification on the bolt head showing embedment angle and model
- Sweep geometry to optimize position in form
- Rolled thread for higher tensile capacity
- Hex nuts and plate washer fixed in position
- Diameter: 1 in.
- Length: 30 in.
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Install With: Top nuts and washers for holdown attachment are not supplied with the SB; on HDG SB anchors, chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563
